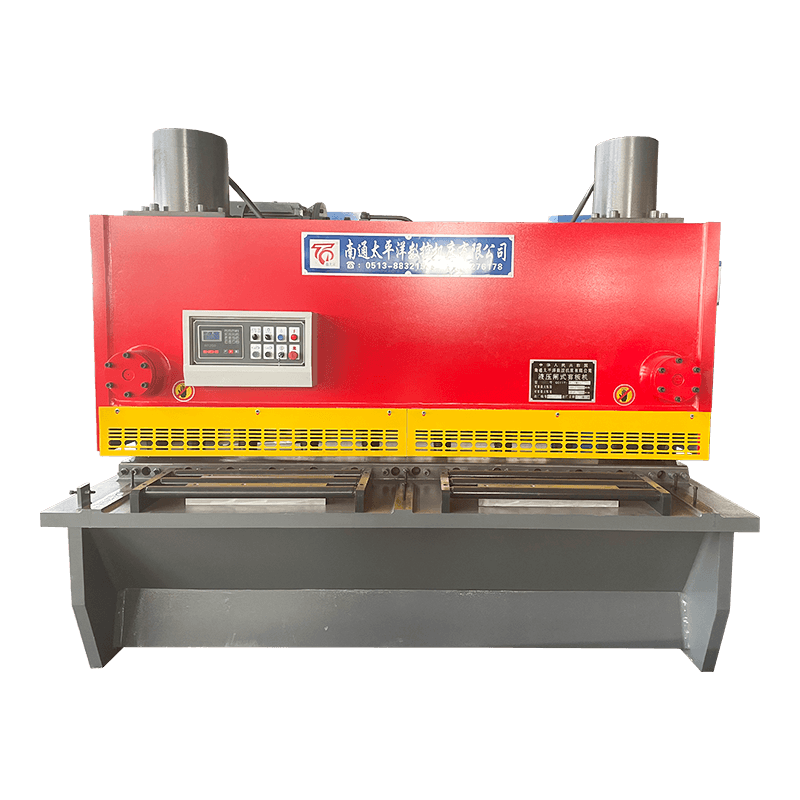

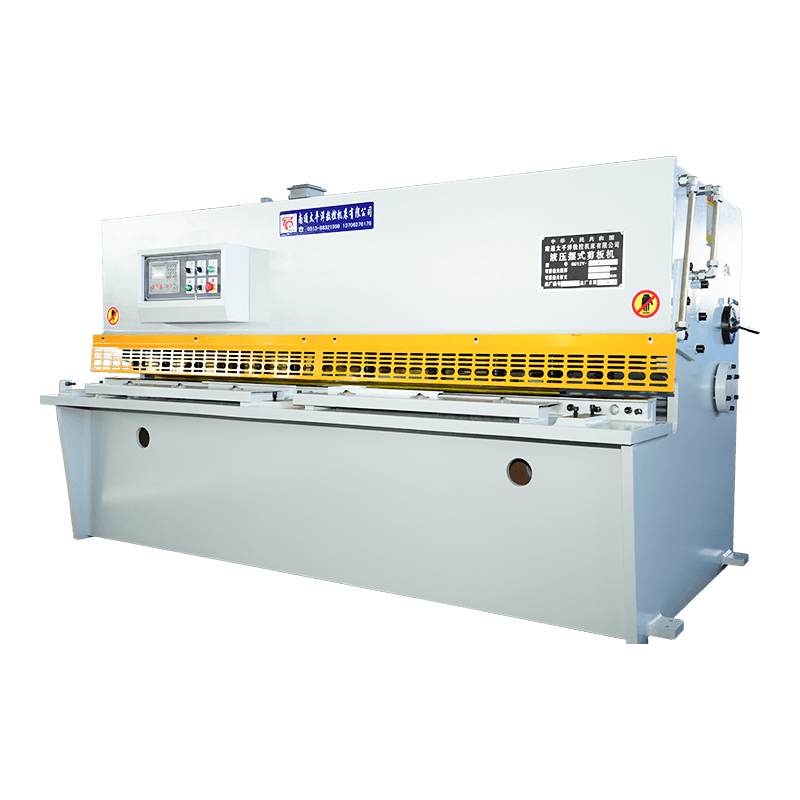

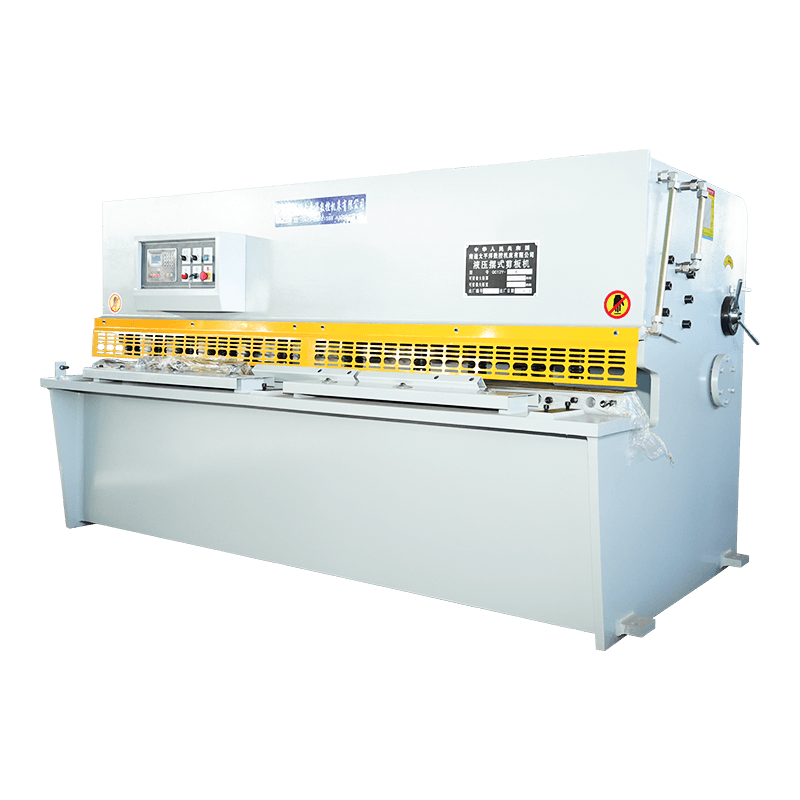

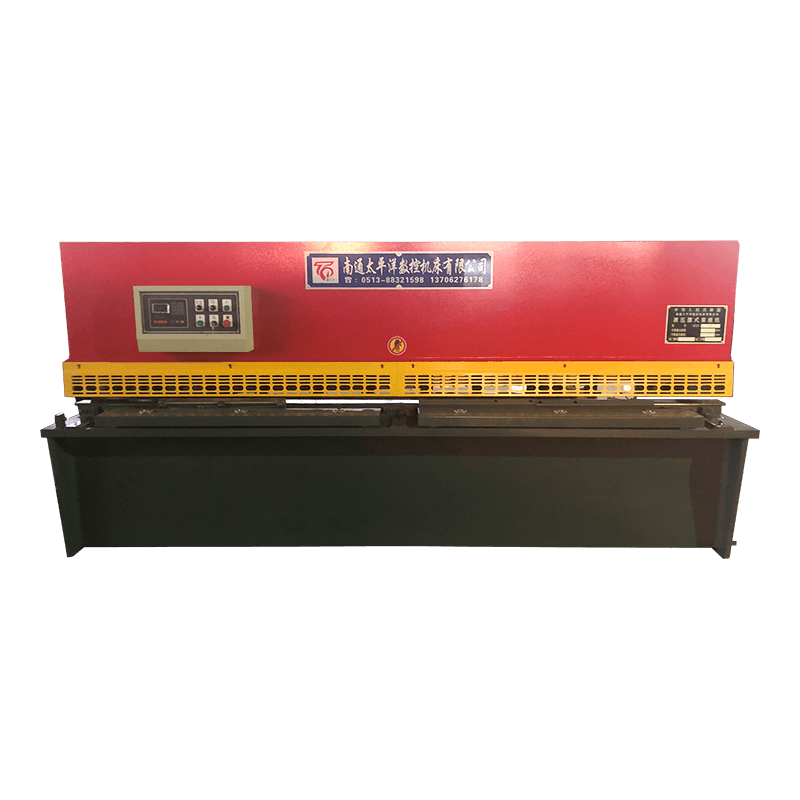

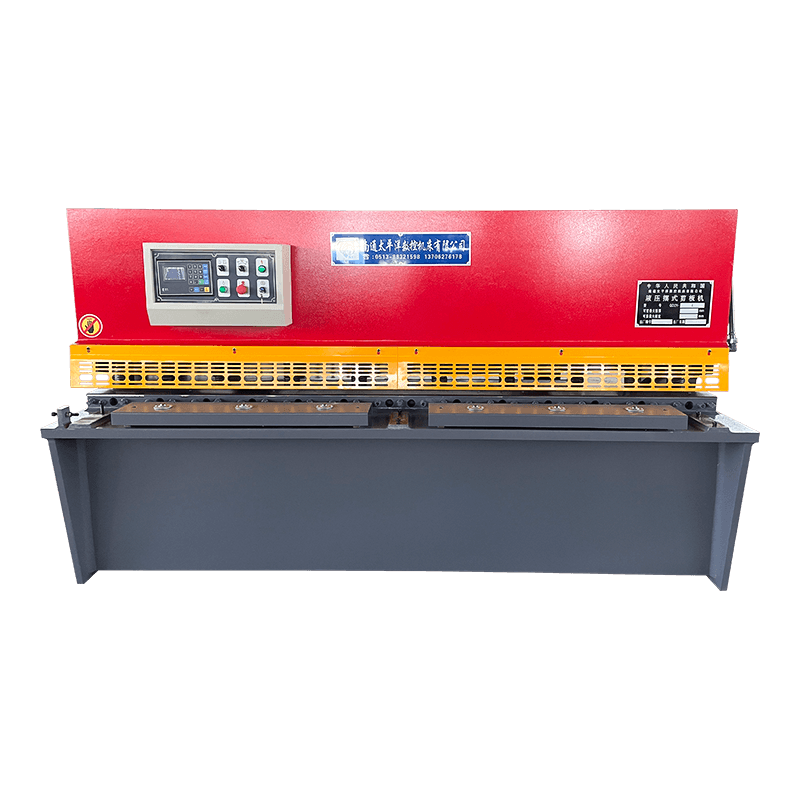

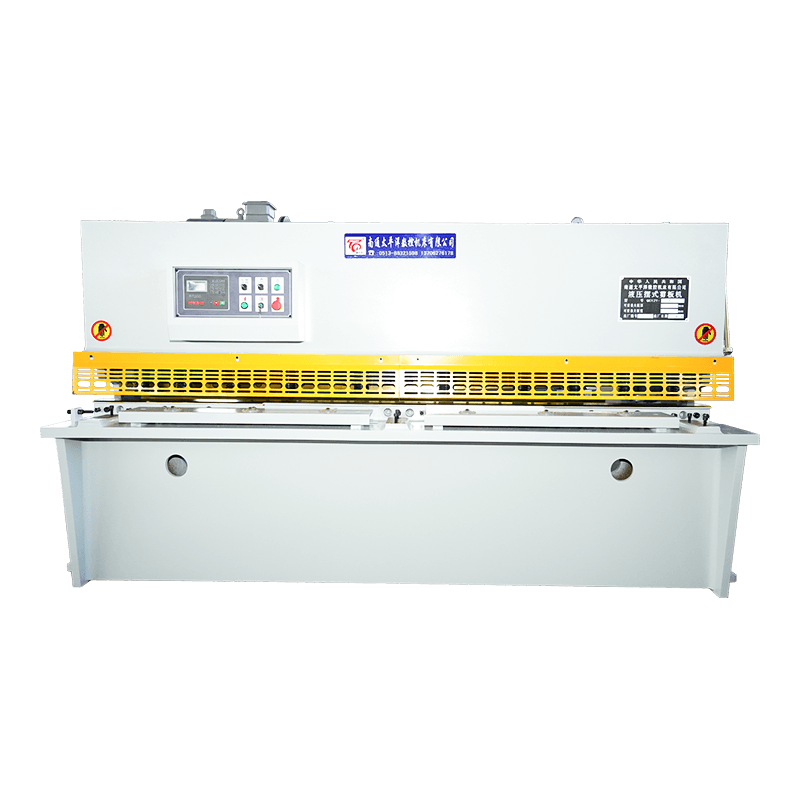

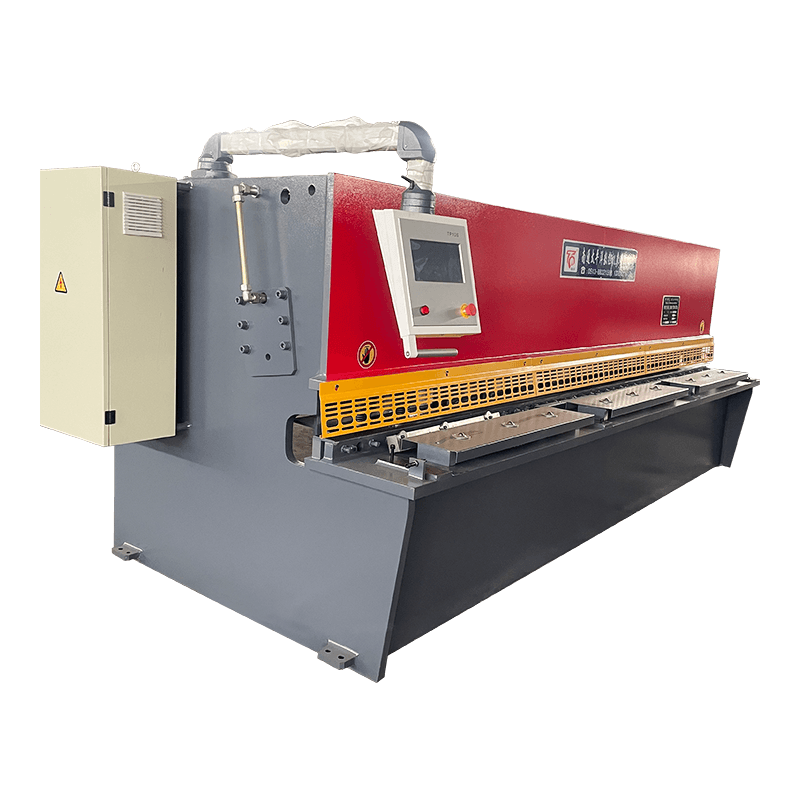

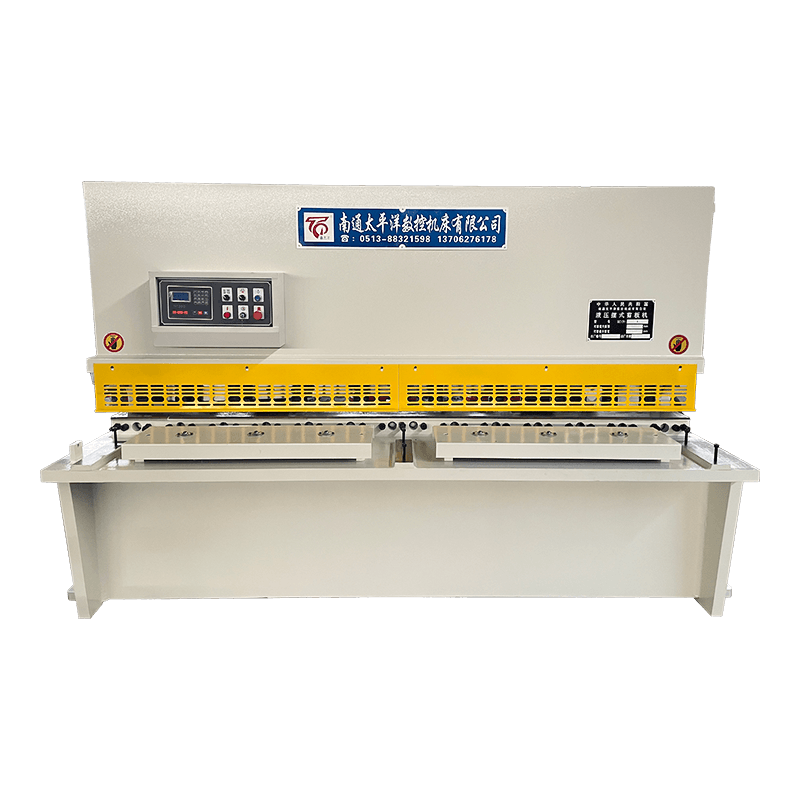

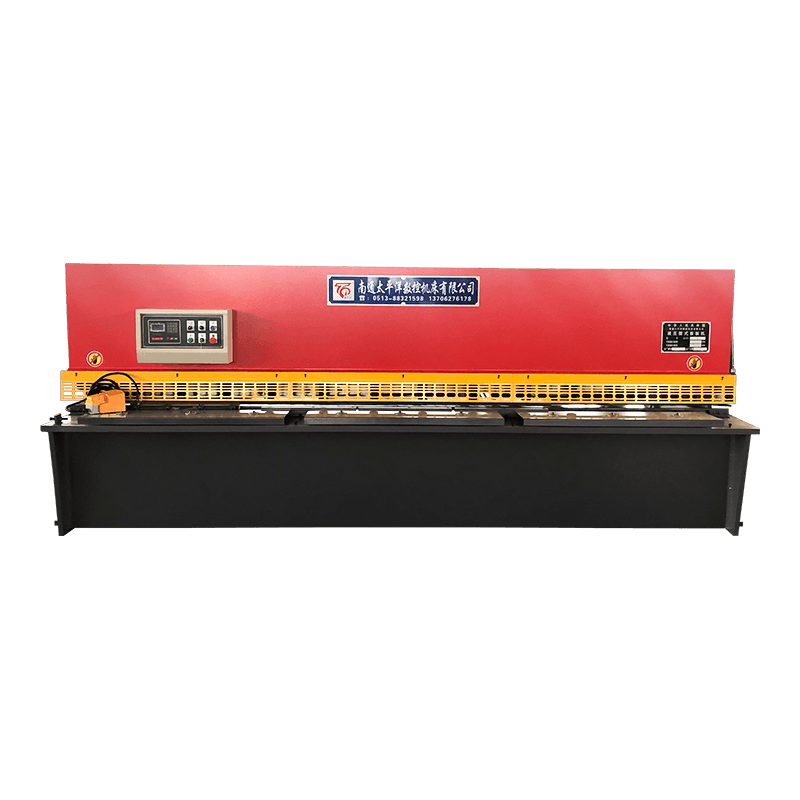

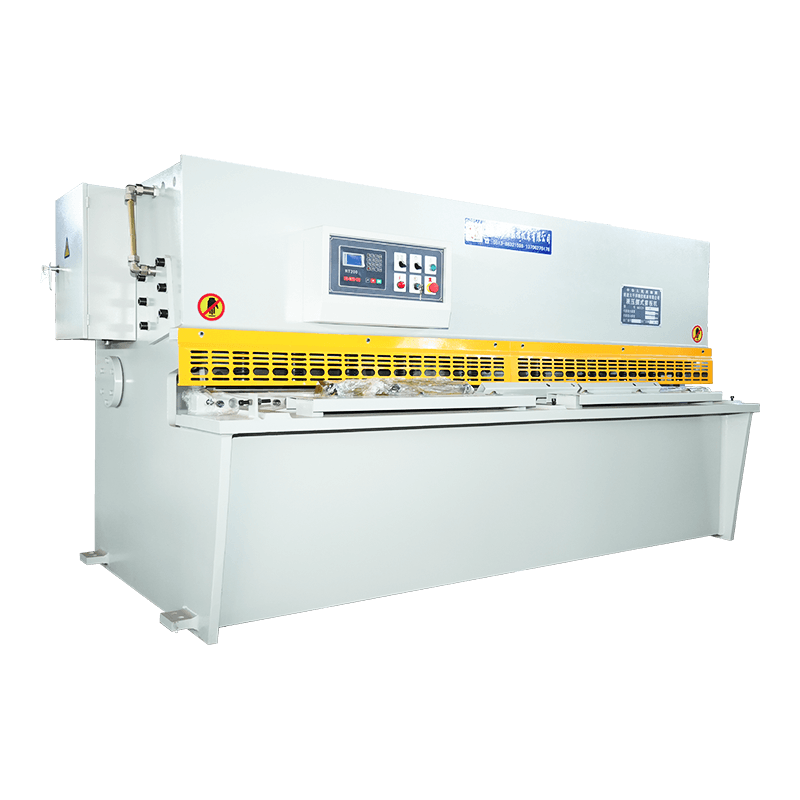

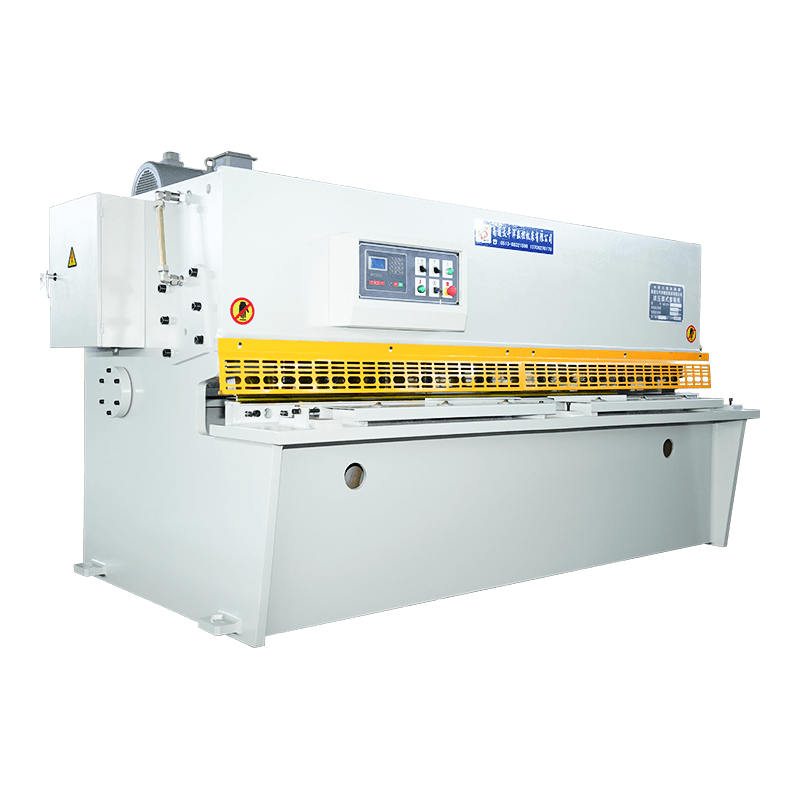

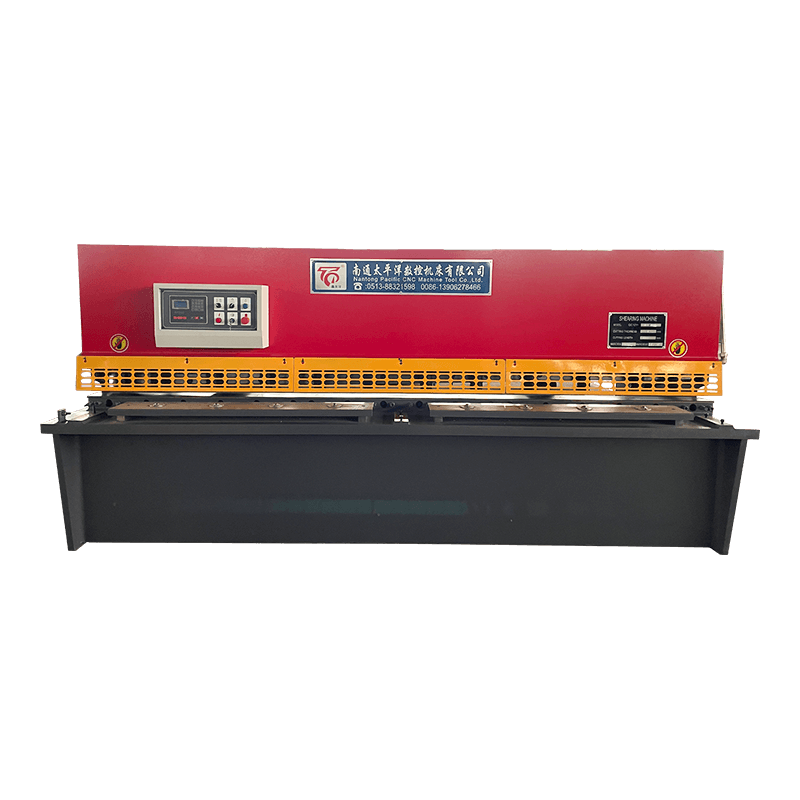

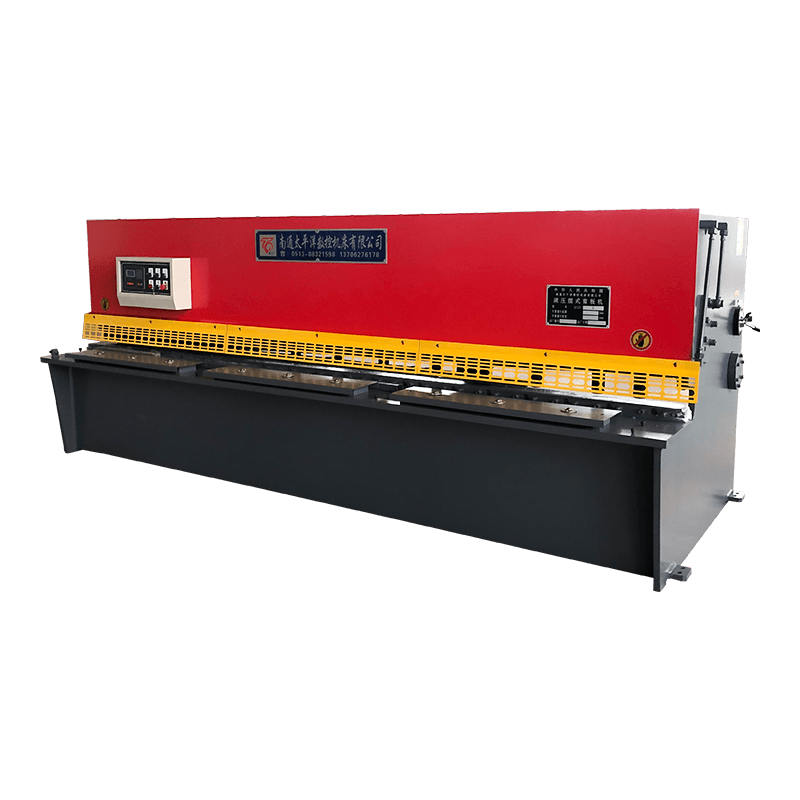

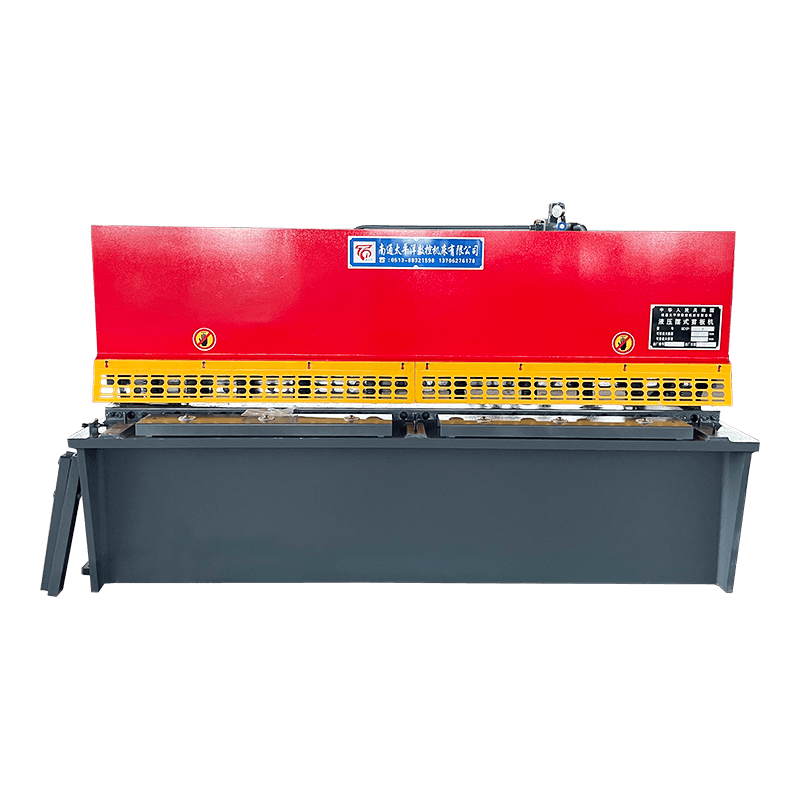

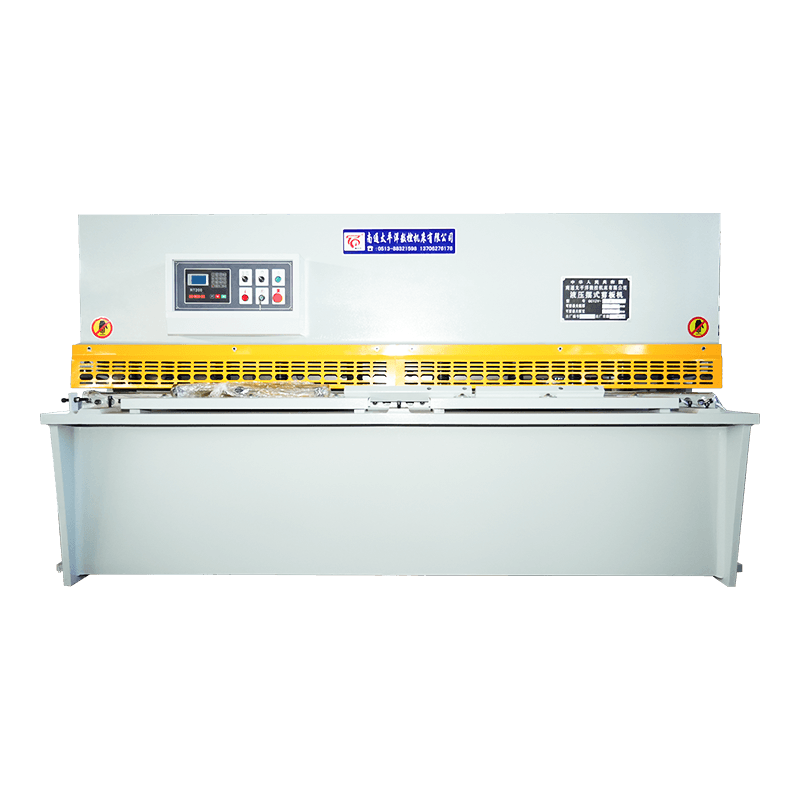

QC12Y/K Series CNC Standard/Hydraulic Swing Beam Shearing Machine

FEATURES:

• The inverter controls the rear stop motor to ensure that the rear stop accuracy is controlled within 0.05mm
• The blade material is 6CrW2Si
• The E21S system controls the rear stop stroke and the shearing blade stroke, and can store up to 40 sets of programs
• The overflow valve protects the system from overload, and the knife holder returns with nitrogen
• The foot switch emergency stop function can protect against protrusions
• Manually adjust the blade gap to obtain better shearing results
• The front support is equipped with a ruler to accurately locate the feeding length

Inquiry

Product Description

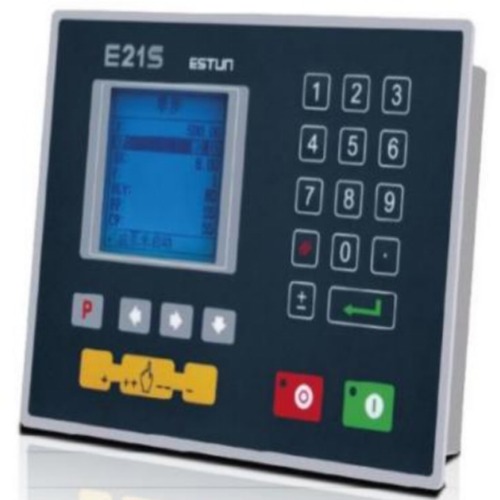

Using ESTUN company's E21-S shearing machine special CNC device

This product has the following features:

Back gauge positioning control.
Intelligent positioning function.
One-way and two-way positioning function, effectively eliminating the screw gap.
Retreat function.
Automatic reference point search function.
One-key parameter backup and restore function.
Quick position teaching function.
40 multi-step program storage space, each program has 25 steps.
Power failure protection function.

QC12Y/K- Technical parameter



Model

Shearing
Thickness
(mm)

Shearing
Width
(mm)

Strokes
(times/mm)

Back gauge
Range
(mm)

Rake angle
(°)

Main Motor
(KW)

Weight
(KG)

Overall
Dimensions
LXWXH
(mm)

QC12Y-4X2500

4

2500

18

20-600

1°30'

5.5

3500

3150X1460X1520

QC12Y-4X3200

4

3200

14

20-600

1°30'

5.5

5000

3820X1720X1620

QC12Y-4X4000

4

4000

10

20-600

1°30'

5.5

7500

4620X1850X1720

QC12Y-6X2500

6

2500

18

20-600

1°30′

7.5

5000

3150X1540X1570

QC12Y-6X3200

6

3200

14

20-600

1°30'

7.5

6100

3820X1660X1620

QC12Y-6X4000

6

4000

10

20-600

1°30'

7.5

8500

4630X1880X1750

QC12Y-6X6000

6

4000

8

20-800

1°30'

11

17800

6750X2500X2090

QC12Y-8X2500

8

2500

15

20-600

1°30'

11

6500

3150X1540X1570

QC12Y-8X3200

8

3200

11

20-600

1°30'

11

7600

3820X1660X1620

QC12Y-8X4000

8

4000

8

20-600

1°30'

11

9300

4630X1880X1750

QC12Y-10X2500

10

2500

14

20-600

1°45'

15

8500

3250X1980X1890

QC12Y-10X3200

10

3200

10

20-800

1°45'

15

9800

3900X1980X1890

QC12Y-10X4000

10

4000

7

20-800

1°45'

15

13500

4700X2150X1950

QC12Y-12X2500

12

2500

11

20-800

18.5

10000

3260X2080X1950

QC12Y-12X3200

12

3200

9

20-800

18.5

11000

3940X2080X1950

QC12Y-12X4000

12

4000

6

20-800

18.5

14000

4720X2200X2050

QC12Y-16X2500

16

2500

9

20-800

18.5

11000

3280X2280X2050

QC12Y-16X3200

16

3200

7

20-800

18.5

13000

3940X2450X2050

QC12Y-16X4000

16

4000

5

20-800

18.5

15500

4750X2450X2050



Description and specifications given in this catalogue are subject to modification without notice.
