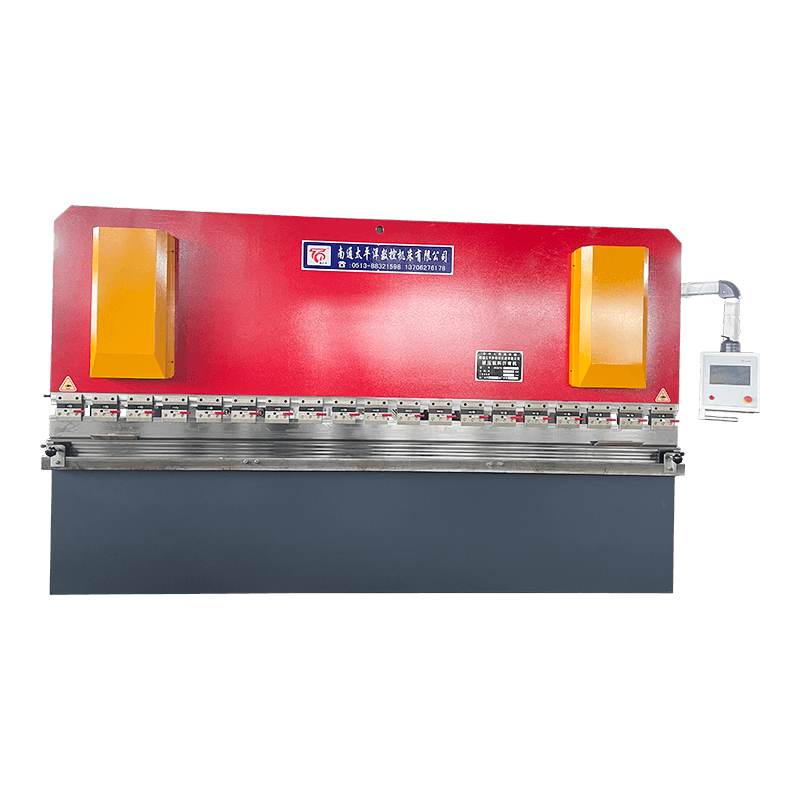

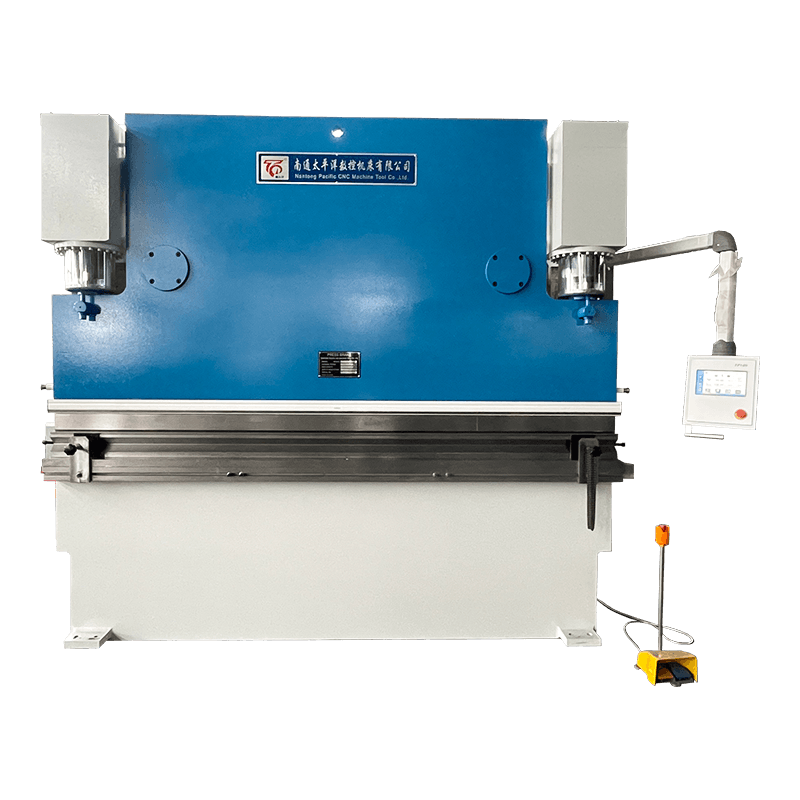

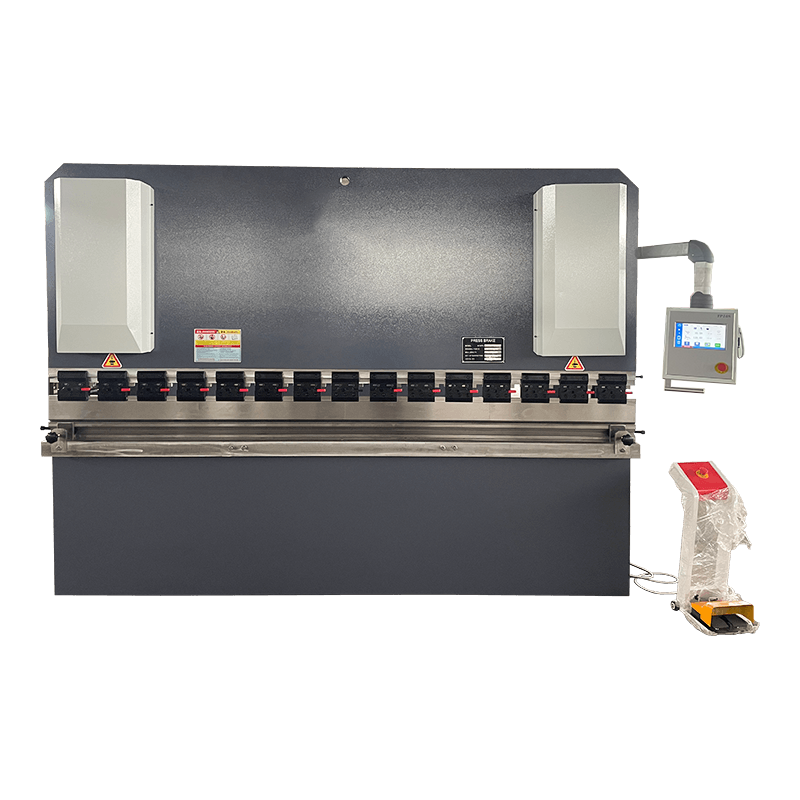

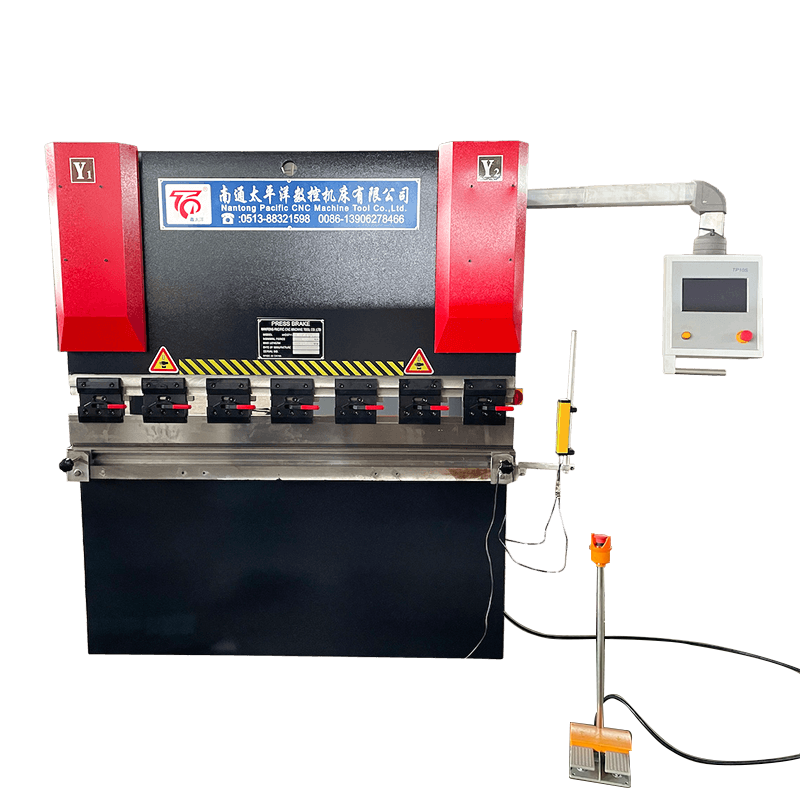

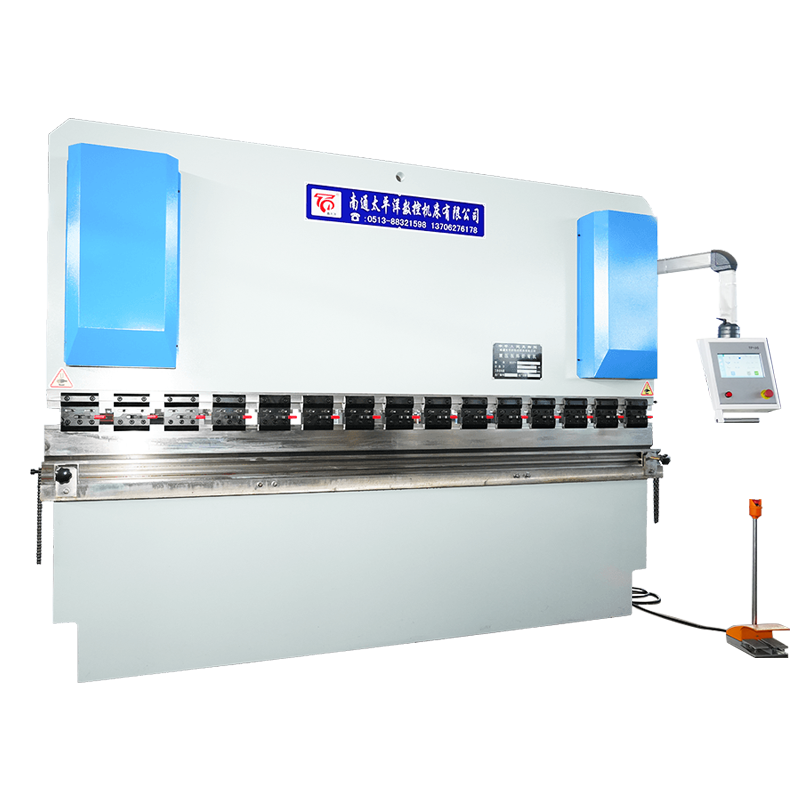

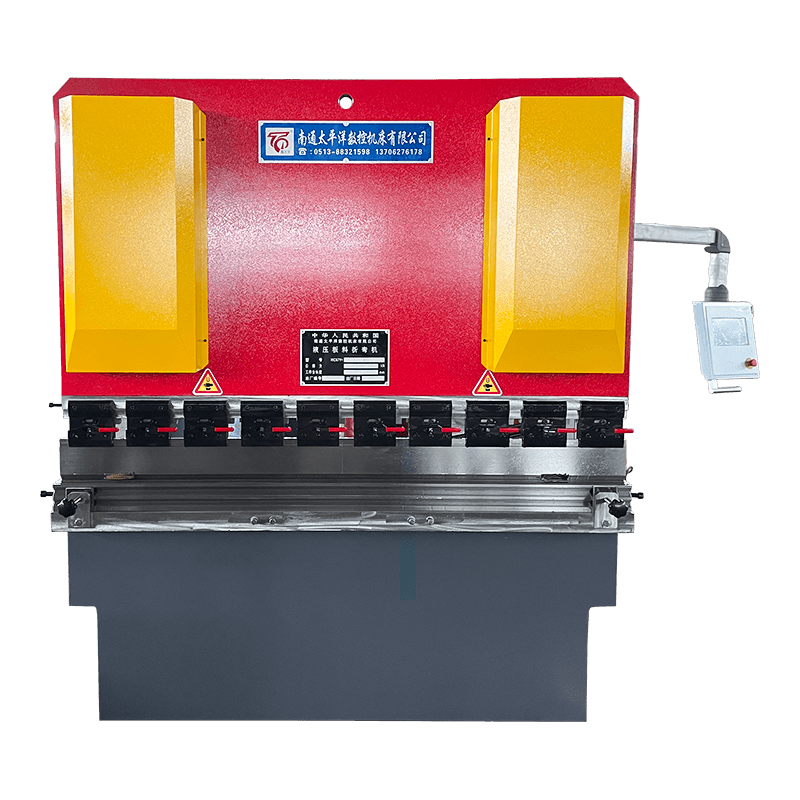

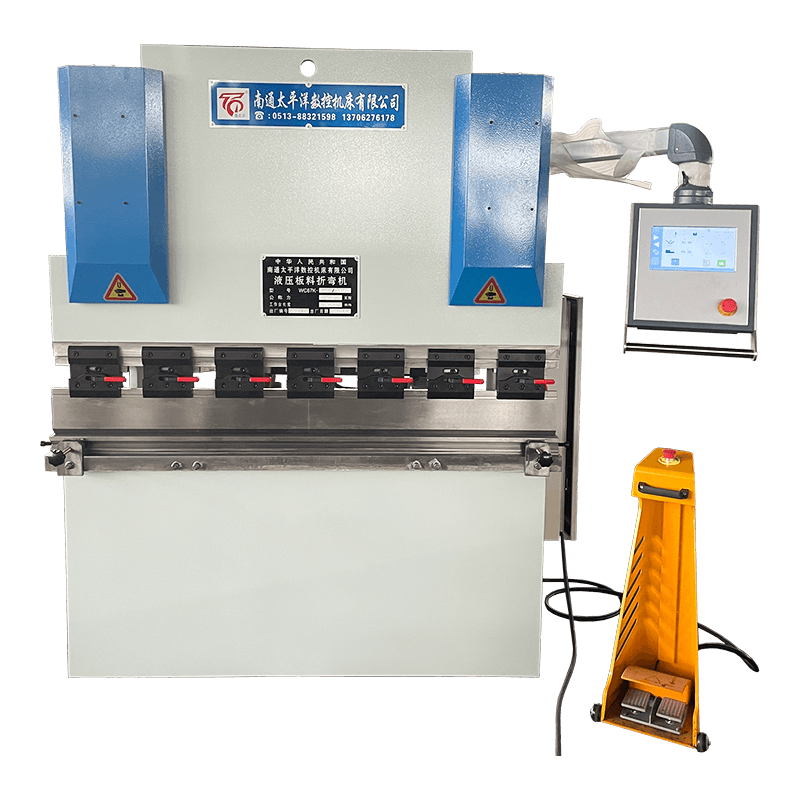

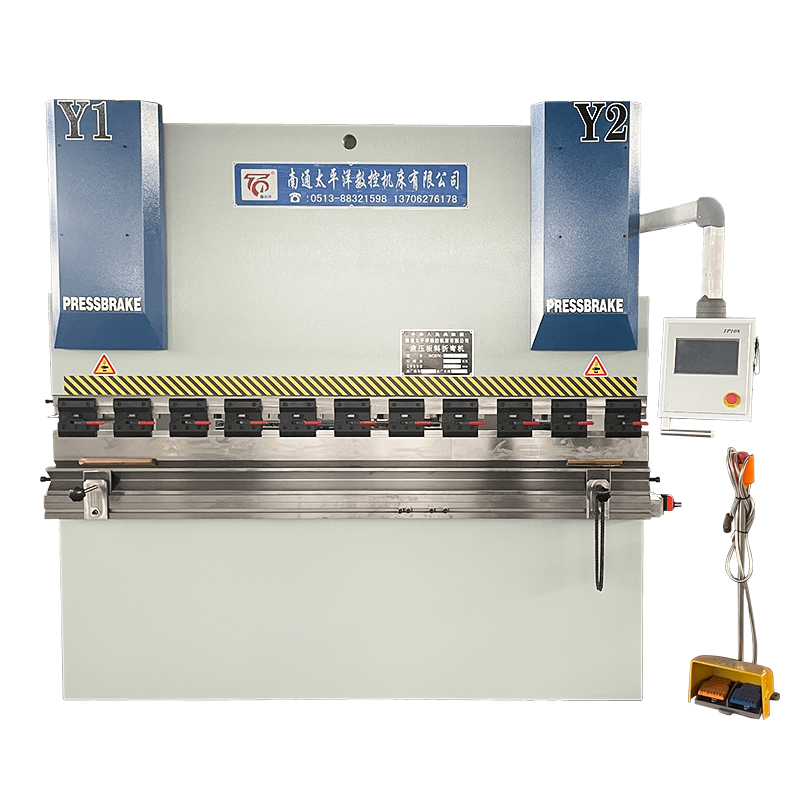

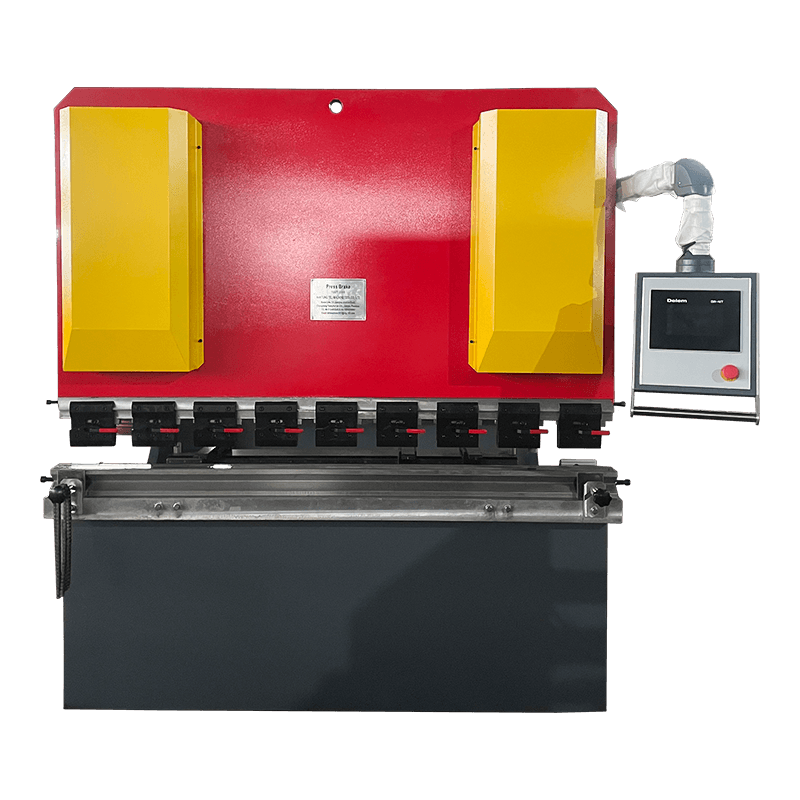

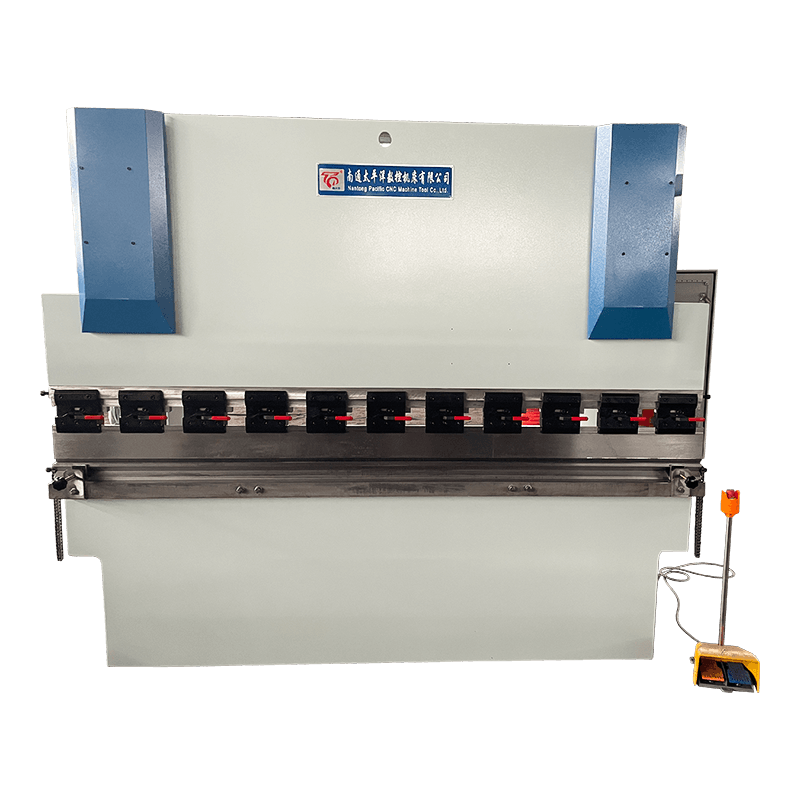

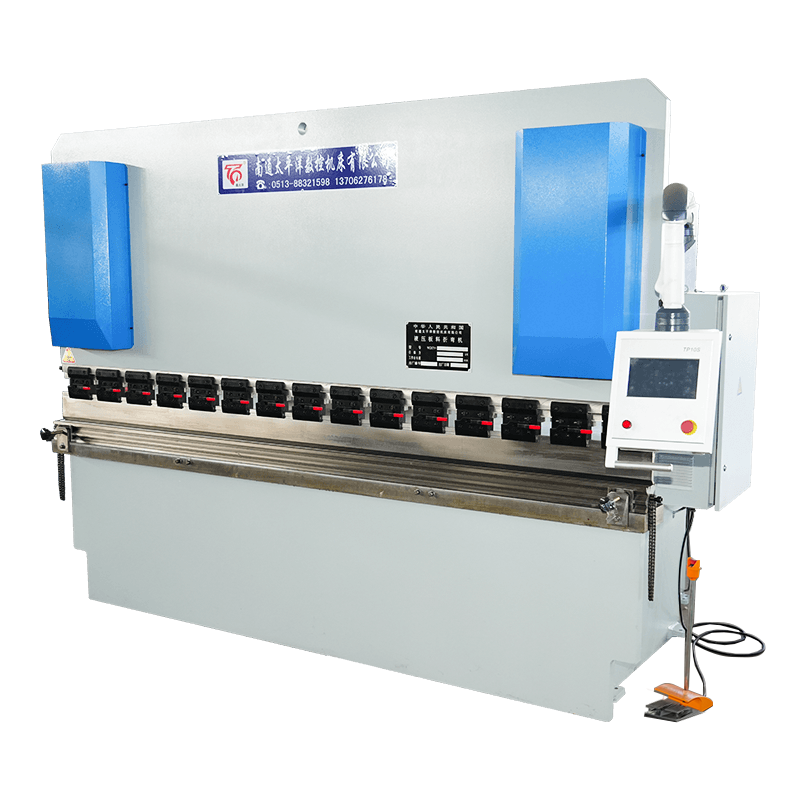

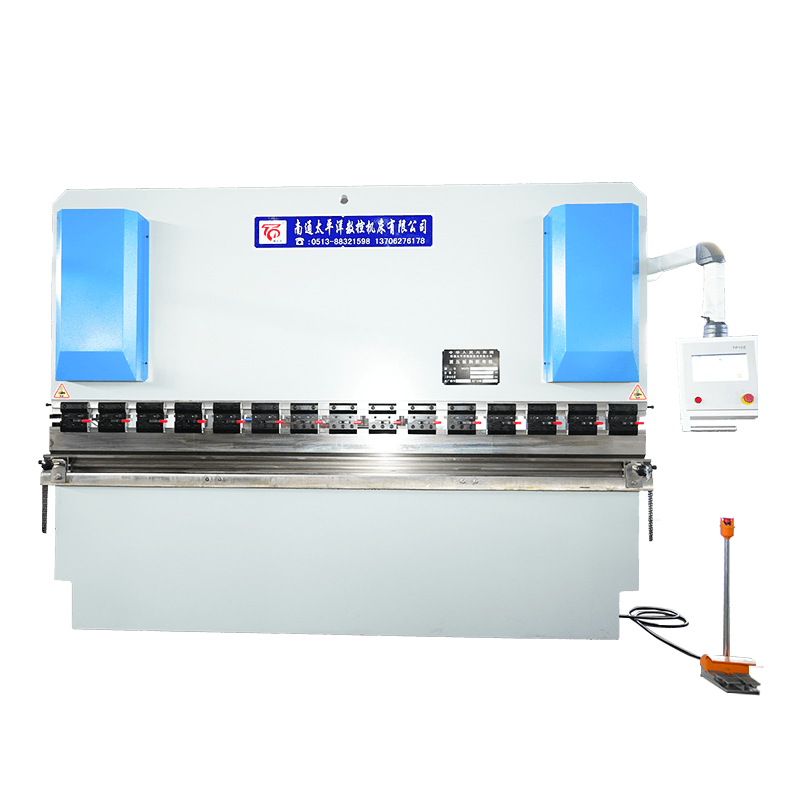

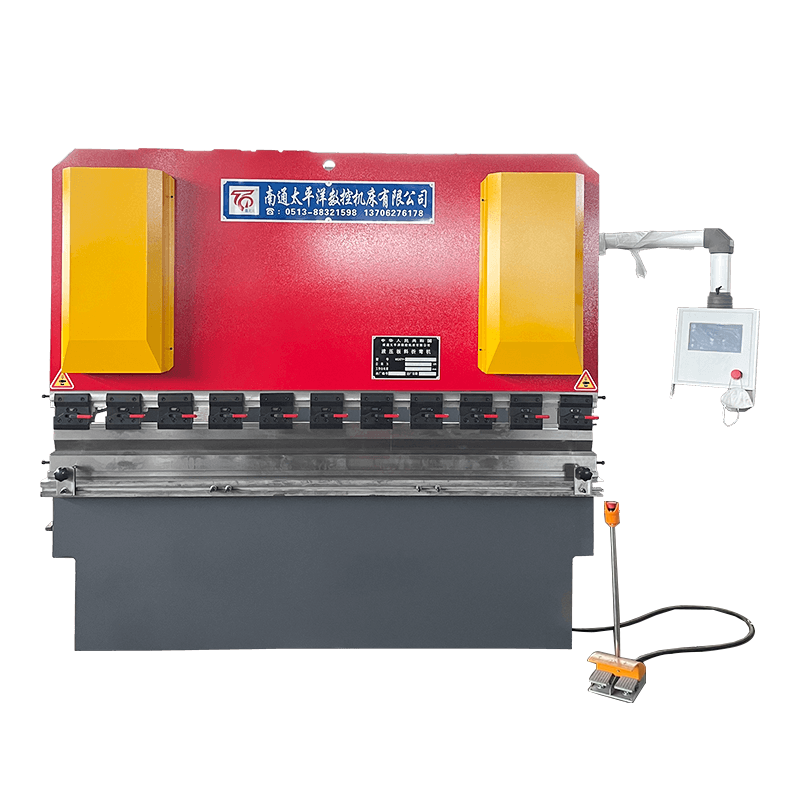

WC67K Series Torsion Axis Synchronous CNC Hydraulic Sheet Metal Bending Machine

Usually with TP10S \ DA41T CNC system (can also be equipped with Swiss Cybelec CT8)

With TP10S:

FEATURES:

• The whole machine adopts steel plate welding structure, and ANSYS stress analysis software ensures the stability and accuracy of the machine.
• The upper and lower molds can be segmented according to customer requirements to adapt to the processing of products of different sizes.
• The servo motor that controls the back gauge and cylinder stroke is controlled by the servo driver, which can achieve higher working accuracy.
• The X-axis (back gauge) and Y-axis (cylinder stroke or slide stroke) can be controlled by the system. The system can store multiple sets of programs to facilitate the processing of subsequent products.
• The emergency stop function of the foot switch can ensure that the machine stops in an emergency.
• The system can perform angle programming by inputting material length and thickness, and mold parameters.

Inquiry

Product Description

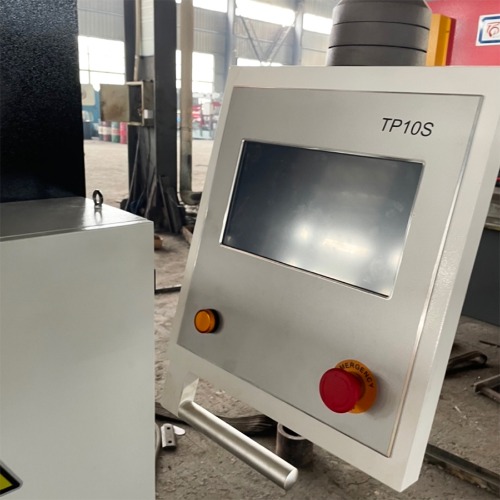

TP10S system introduction:

• 10-inch TFT high-definition and high-contrast touch screen system
• The page is simple and the large buttons are easier to operate.
• The menu-based programming style, the user interface is intuitive and friendly.
• The controller and the driver use high-speed and reliable bus communication.
• Convenient wiring and easy maintenance.
• Perfect programming can improve the efficiency of batch multi-step bending.
• Interactive alarm display.
• Optional language: Chinese, English.
• Optimized bending.
• Supports automatic calculation of bending angle and length.
• Supports angle compensation and length compensation.
• Supports escape function.
• Supports mold management.
• Can store multi-step bending sequence and products. Powerful functions
• High reliability and strong anti-interference ability
• Support valve configuration
• Soft limit function
• Manual axis shift (password protection)
• X\Y axis navigation teaching function (password protection)

With DA41T:

Machine tool performance features

• The whole machine adopts steel plate welding structure, and ANSYS stress analysis software ensures the stability and precision of the machine.
• The upper and lower molds can be segmented according to customer requirements to adapt to the processing of products of different sizes
• The servo motor that controls the back gauge and cylinder stroke is controlled by the servo driver, which can achieve higher working accuracy
• The X-axis (back gauge) and Y-axis (cylinder stroke or slider stroke) can be controlled by the system, and the system can store multiple sets of programs to facilitate the processing of subsequent products
• The DA-41S system can program the angle by inputting material length and thickness, and mold parameters
• The foot switch emergency stop function ensures that the machine stops in an emergency
• The product has high configuration, fast running speed, and more stable performance

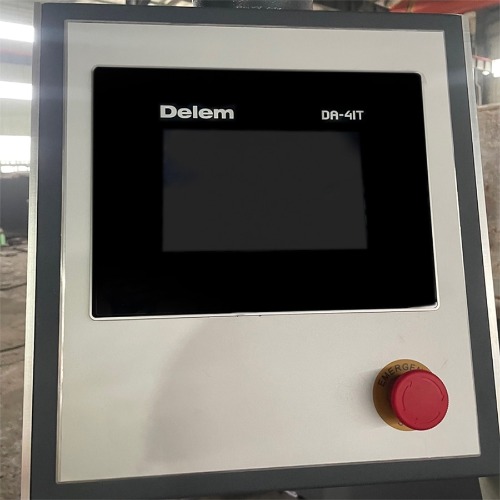

Introduction to DA41T system





Technical specifications

- Program number

- Maximum number of program steps 25

- Metric/imperial conversion

- Power-off memory

- Machine working time counting

Axis parameters

- Travel range: 0-9999.99mm

- Escape distance: 0-9999.99mm

- Position correction range: 0-9999.99mm

- Escape programmable

- Synchronous transfer of axes

- Manual movement of any axis

Installation

- Vertical panel installation

- Dimensions: 189x257x40mm

Programming function

- User-friendly interface

- Data programming settings

- Bending angle

- Mold parameter settings

- Back gauge position

- Escape function

- Y-axis return

- Y-axis correction

- Bending speed selection

- Program count

Calculation function

- Depth calculation of Y axis

Internal integration

- Diagnostic mode

Axis control input/output

- +/-10V servo motor

- Two-speed AC motor control

- Single-stage control with directional output (variable frequency operation)

Digital input/output

- Flexible input/output point configuration

- Broadcast and television isolation

Interface

- TTL encoder interface

- 1MHz counting frequency

- 5V or 12V unipolar or differential input

- DNC RS-232C full duplex

Auxiliary functions

- Multiple language selections

- Offline backup and call of parameters and programs



Machine standard configuration:

• Standard TP10S CNC system, manual R axis
• Fixed and removable front support
• Bending machine mold is made of 42CRMO material, with a hardness of 42 degrees, which ensures the mold life
• Quick clamp
• X axis is controlled by ball screw and linear guide

Optional:

• Photoelectric or laser protection
• Special mold
• Mechanical compensation or hydraulic compensation system
• Lighting or guardrail customization
• Automatic R axis
• Other special requirements are subject to the company's price verification

Series WC67Y/K Hydraulic Press Brake Main Parameters



Model

Nominal
Pressure
(KN)

Length
of Table
(mm)

Distance
between frames
(mm)

Throat
Depth
(mm)

Stroke
(mm)

Open Height
(mm)

Main Motor
(KW)

Weight
(KG)

Overall Dimensions
LXWXH
(mm)

WC67Y/K-40/1600

400

1600

1150

250

100

340

4

2000

1750x1350x1900

WC67Y/K-40/2200

400

2200

1850

250

100

340

4

2500

2300x1350x1900

WC67Y/K-40/2500

400

2500

2050

250

100

340

4

2800

2600x1400x1950

WC67Y/K-63/2500

630

2500

2050

250

120

360

5.5

4500

2600x1400x2000

WC67Y/K-63/3200

630

3200

2600

250

120

360

5.5

5400

3300X1450X2100

WC67Y/K-80/2500

800

2500

2050

250

120

380

7.5

5800

2650X1420X2120

WC67Y/K-80/3200

800

3200

2600

250

120

380

7.5

6100

3300X1450X2100

WC67Y/K-100/2500

1000

2500

2050

320

120

385

7.5

6100

2650X1450X2200

WC67Y/K-100/3200

1000

3200

2600

320

120

385

7.5

6600

3300X1450X2200

WC67Y/K-100/4000

1000

4000

3200

320

120

385

7.5

8000

4100X1450X2200

WC67Y/K-125/2500

1250

2500

2050

320

120

385

7.5

6300

2650X1550X2200

WC67Y/K-125/3200

1250

3200

2600

320

120

385

7.5

7000

3300X1550X2200

WC67Y/K-125/4000

1250

4000

3200

320

120

385

7.5

8200

4100X1550X2200

WC67Y/K-160/3200

1600

3200

2600

320

200

470

11

10000

3300X1780X2500

WC67Y/K-160/4000

1600

4000

3200

320

200

470

11

12000

4100X1780X2520

WC67Y/K-200/3200

2000

3200

2600

320

200

485

11

12000

3300X1750X2680

WC67Y/K-200/4000

2000

4000

3200

320

200

485

11

13800

3300X1750X2680

WC67Y/K-250/3200

2500

3200

2600

320

250

560

18.5

13600

3300X2000X2880

WC67Y/K-250/4000

2500

4000

3200

320

250

560

18.5

15000

4100X2050X2980

WC67Y/K-300/3200

3000

3200

2600

350

250

560

22

16000

3300X2050X3000

WC67Y/K-300/4000

3000

4000

3200

350

250

560

22

20000

4100X2080X3100

WC67Y/K-300/6000

3000

6000

4700

350

250

560

22

28000

6100X2080X3250

WC67Y/K-400/3200

4000

3200

2600

350

250

580

37

20000

3300X2000X3000

WC67Y/K-400/4000

4000

4000

3200

350

250

580

37

26000

4100X2080X3150

WC67Y/K-400/6000

4000

6000

4750

400

250

580

37

37500

6100X2180X3580

WC67Y/K-500/4000

5000

4000

3200

350

250

580

37

26000

4100X2080X3150

WC67Y/K-500/6000

5000

6000

4750

400

250

580

37

37500

6100X2180X3580
