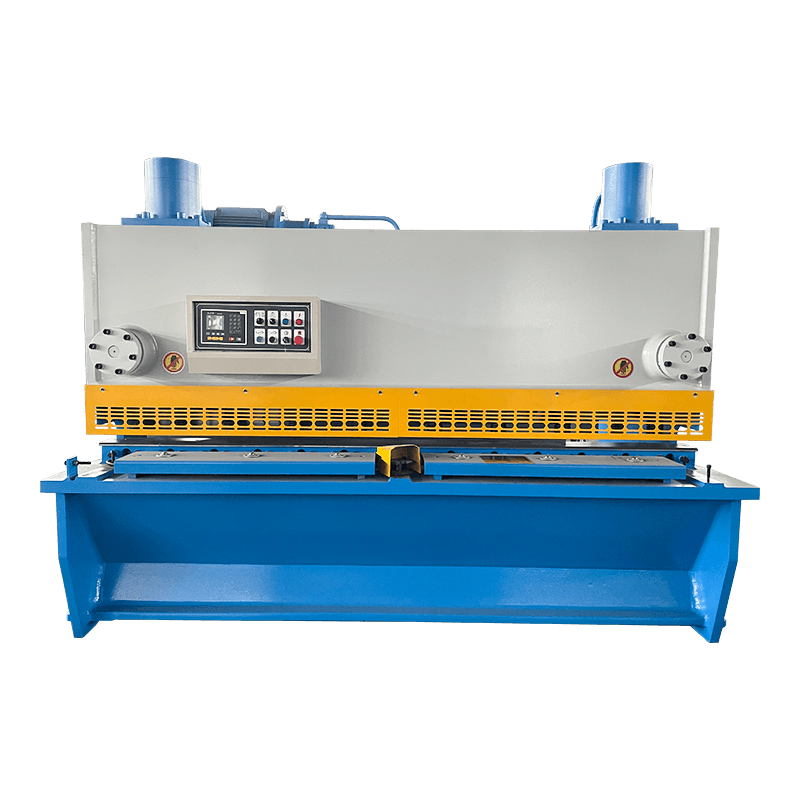

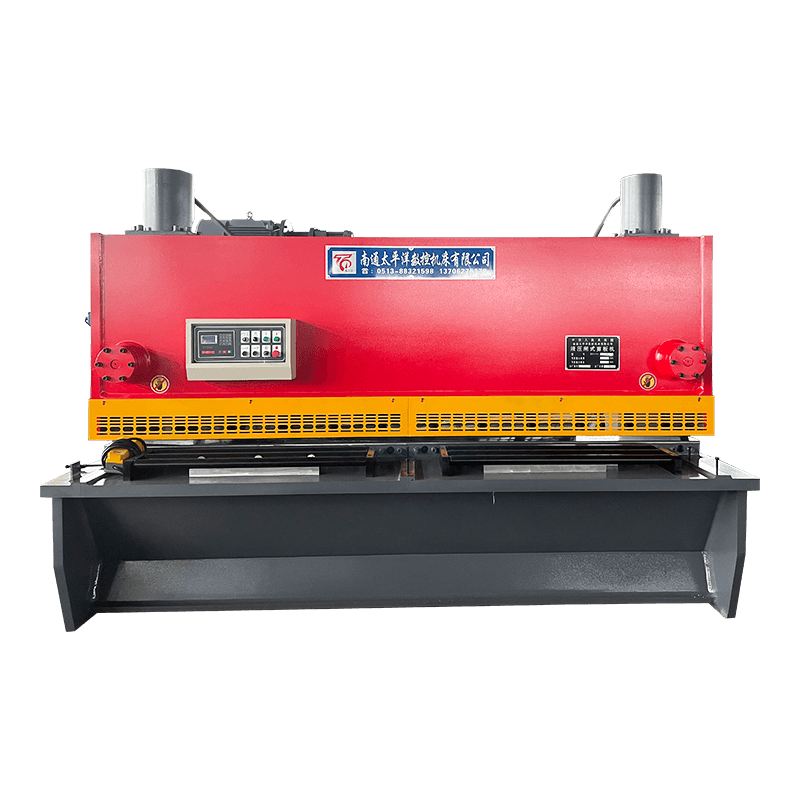

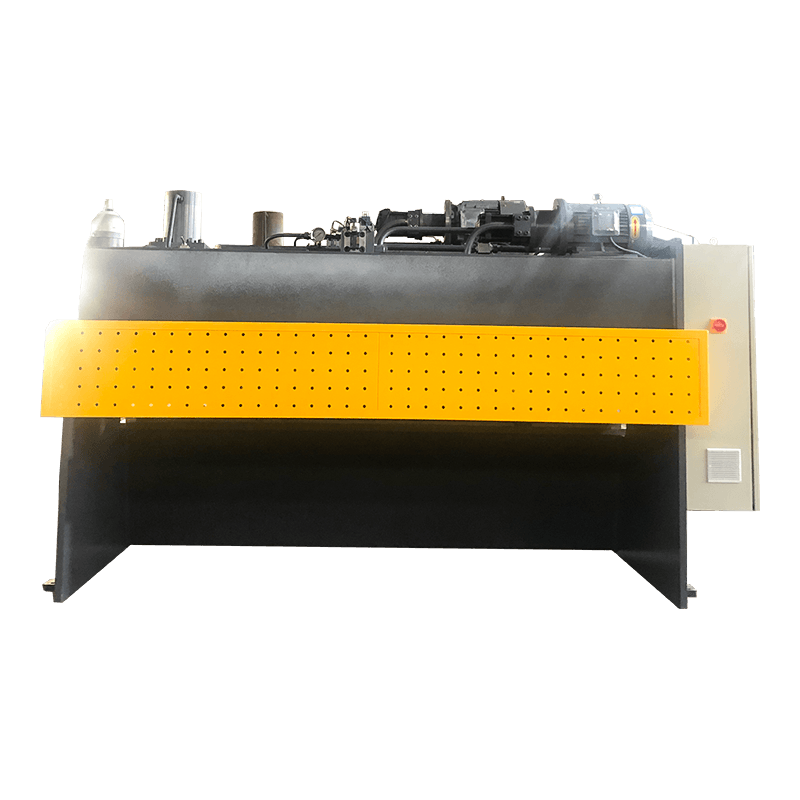

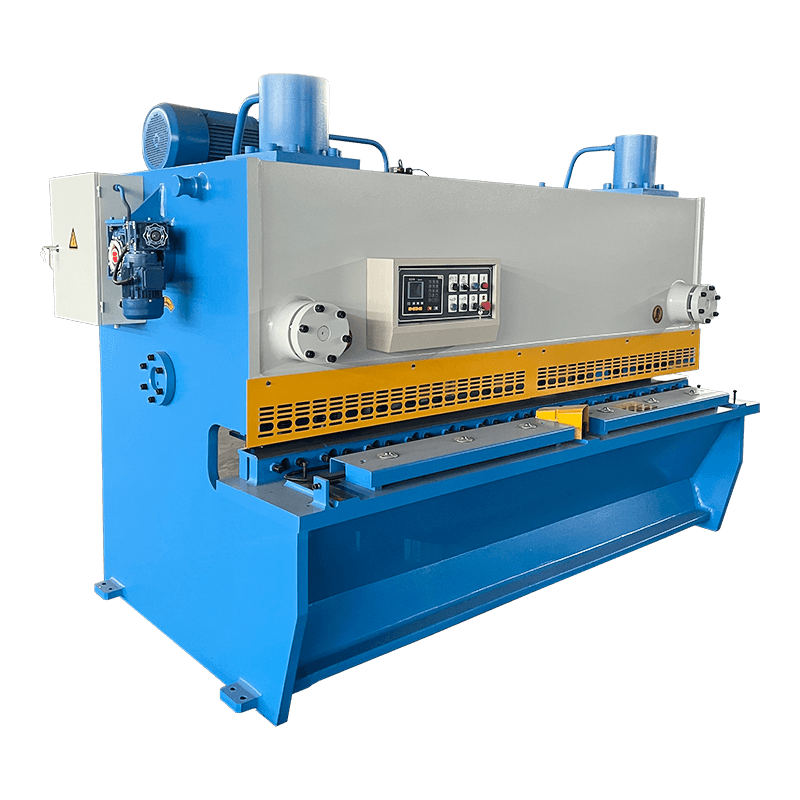

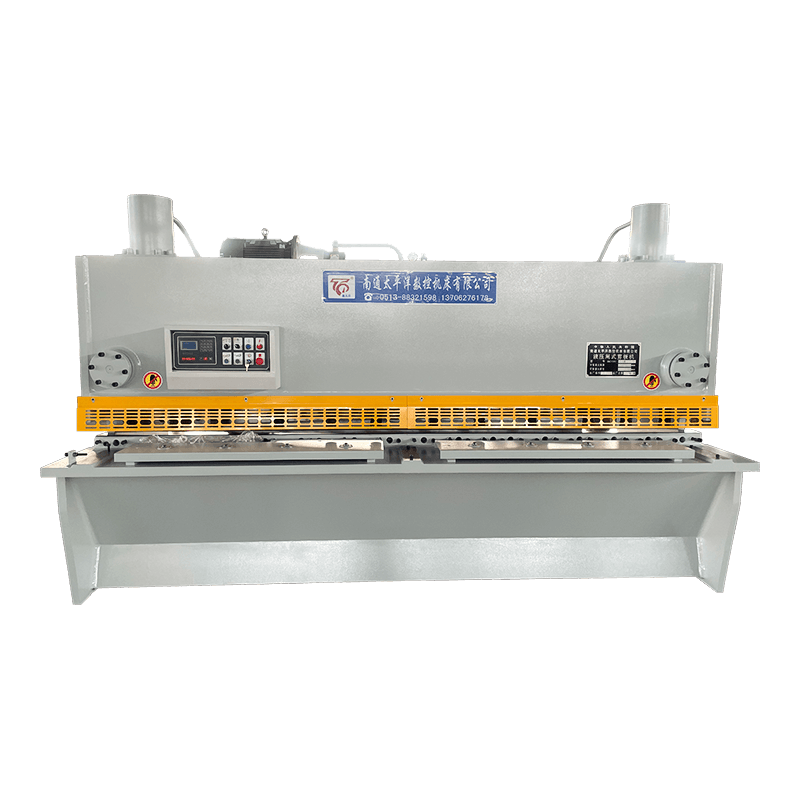

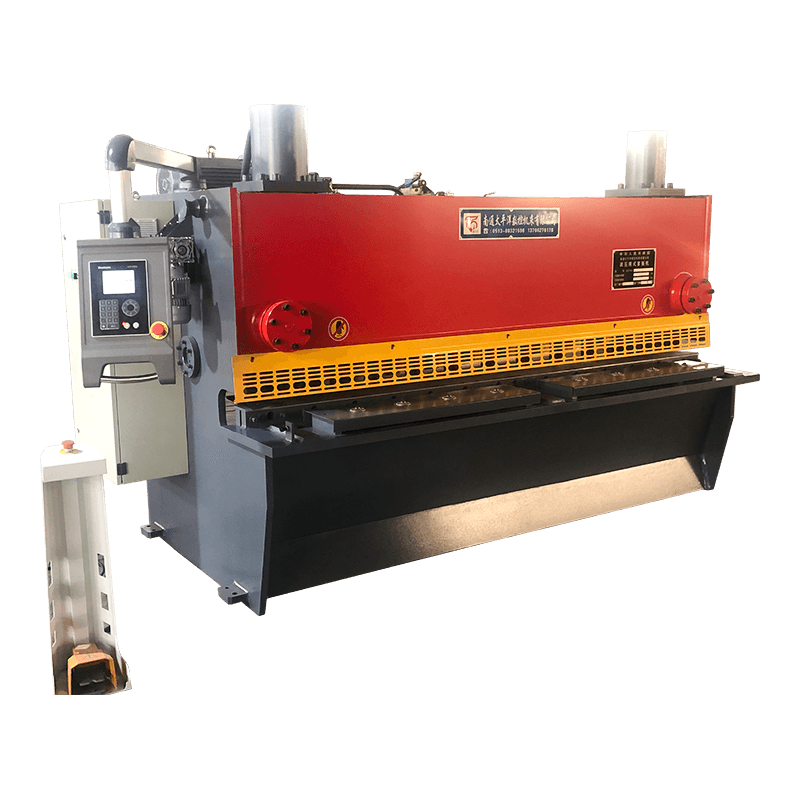

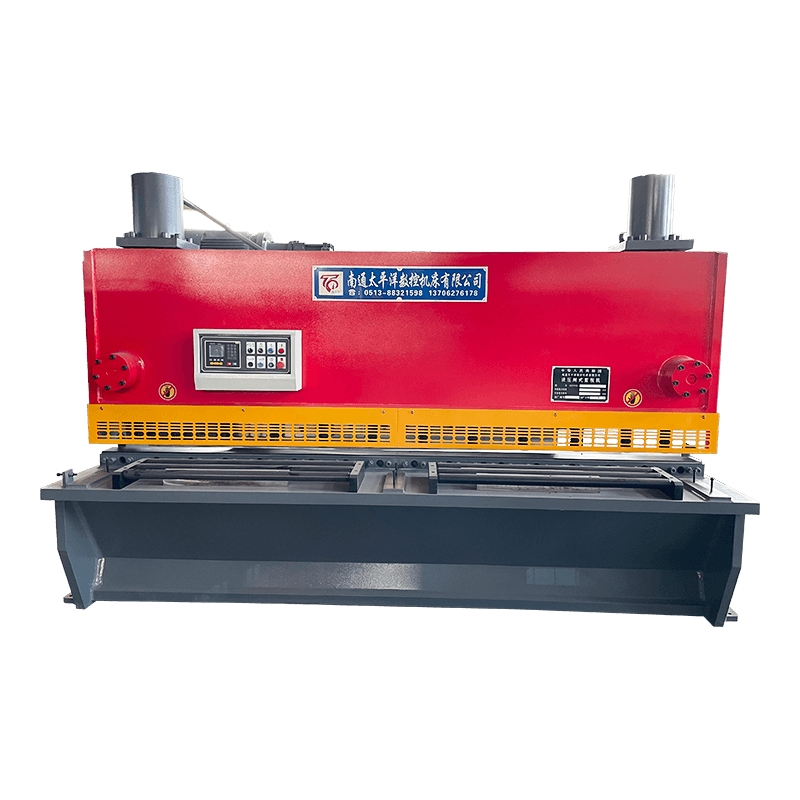

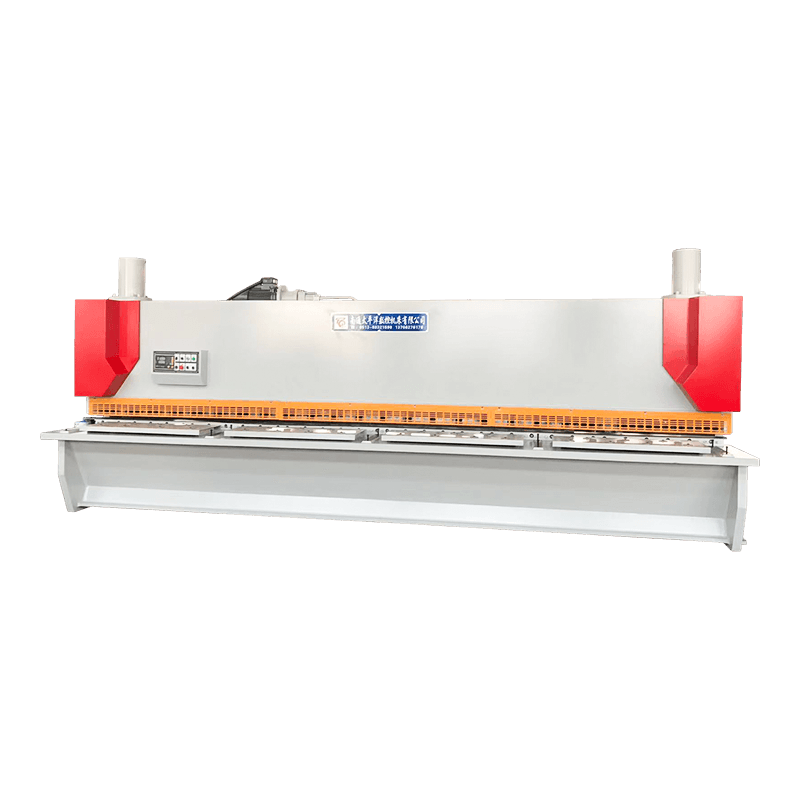

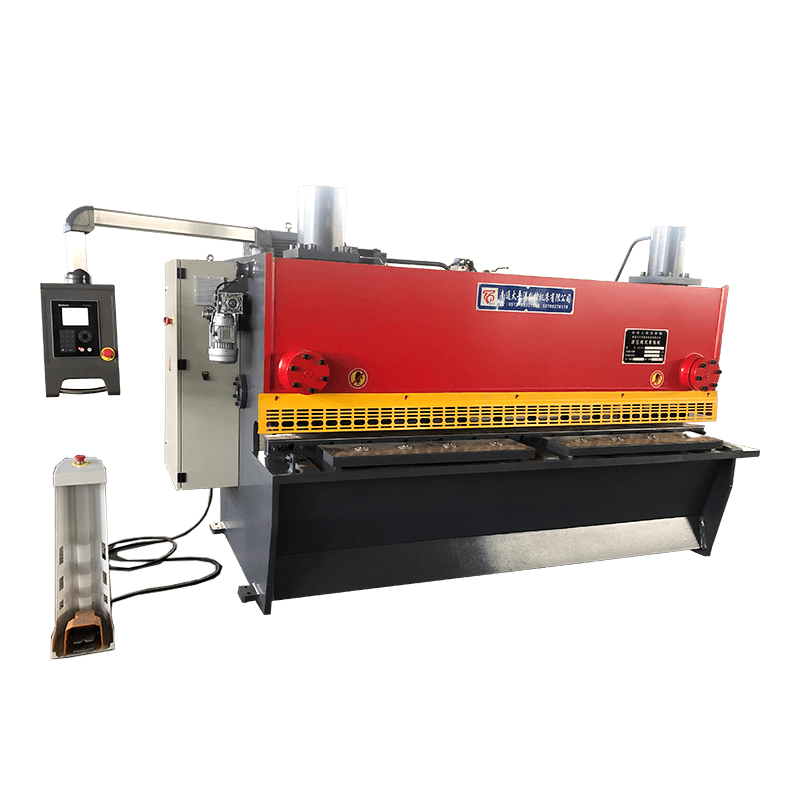

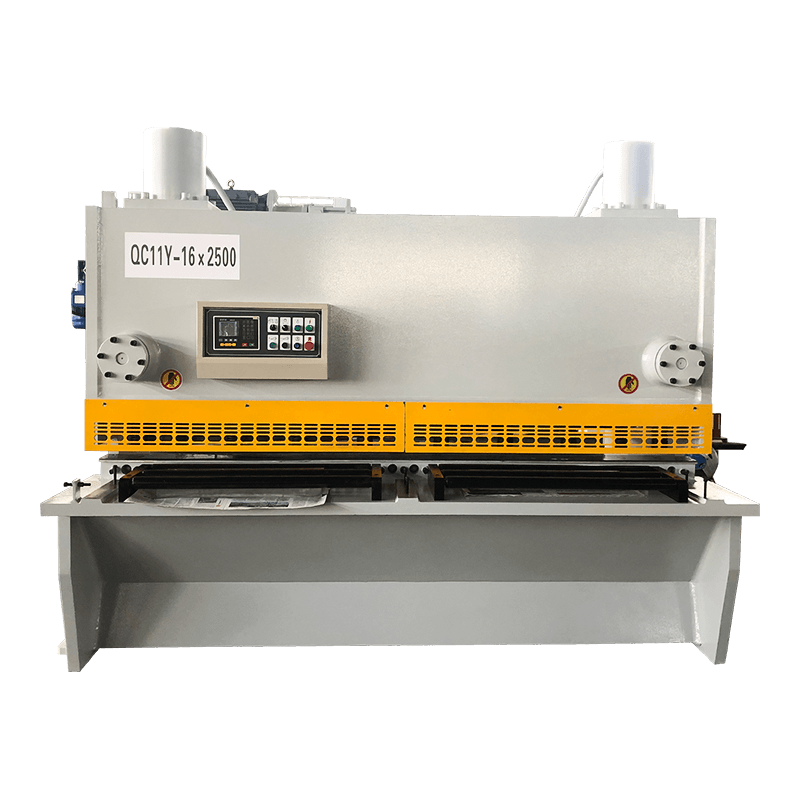

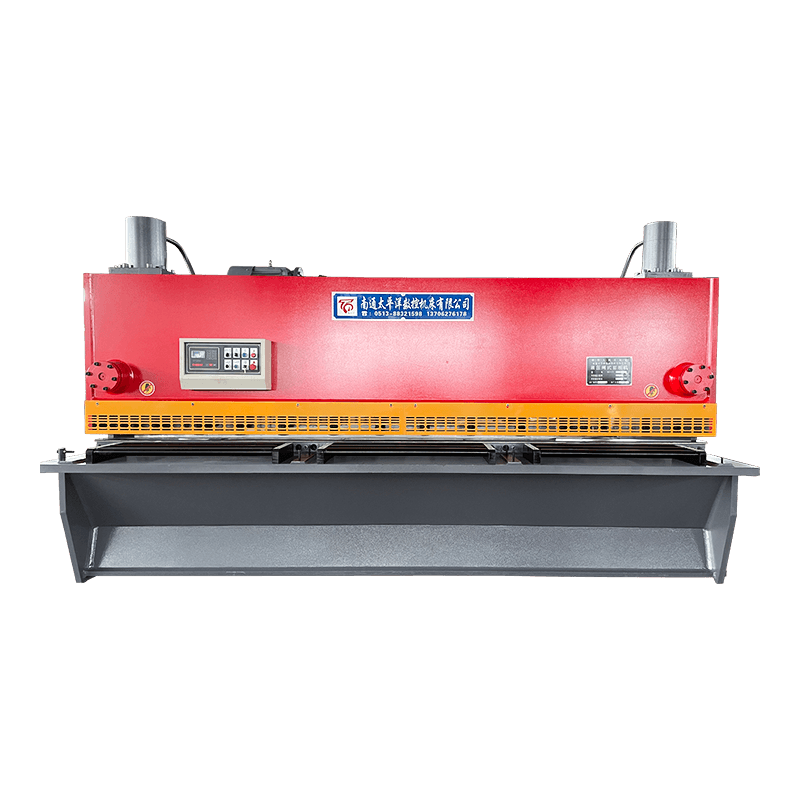

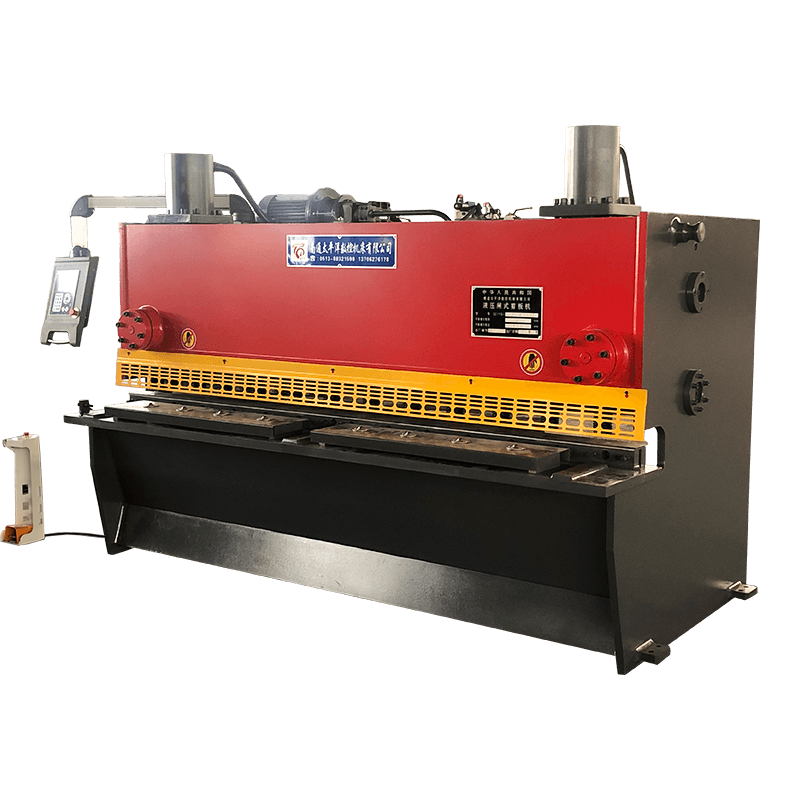

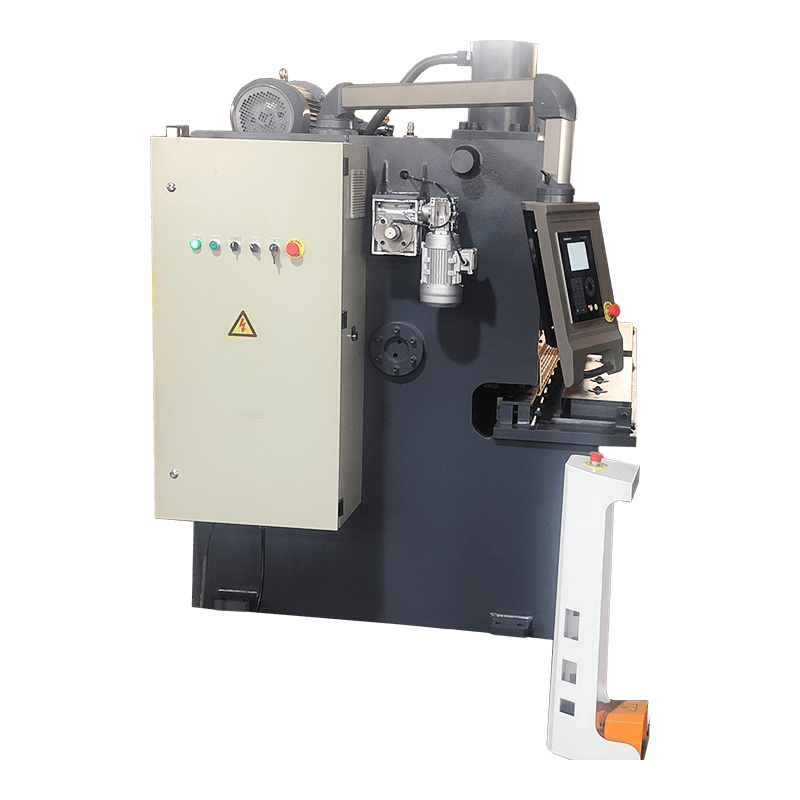

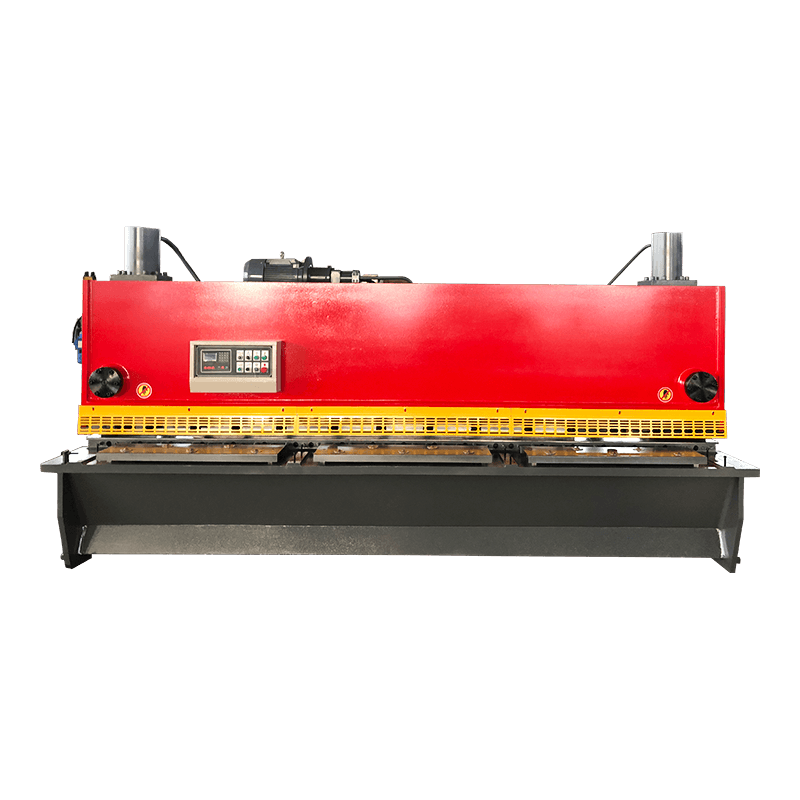

QC11Y/K Series Standard/CNC Hydraulic Guillotine Shearing Machine

Features:

• The all-steel welded structure of hydraulic shear adopts heat treatment to eliminate.
• internal stress, and has good rigidity and stability Advanced integrated hydraulic system, good reliability.
• Three-point support rolling guide, to eliminate bearing clearance, and improve shearing quality.
• Blade clearances are adjusted by motor, rapid, accurate and convenient.
• Rectangular blades; all four cutting edges are usable; long life.
• Adjustable shearing angles, to reduce deformation of plates.
• Upper tool rest adopts the introversion structure, to facilitate blanking, and improve the accuracy of the workpiece.
• Sectional shearing function, and light alignment function.
• Mechanical rear stoppers, digital display.
• Back carrier (or choose other configurations).

Inquiry

Product Description

QC11Y/K- Technical parameter



Model

Shearing
Thickness
(mm)

Shearing
Width
(mm)

Strokes
(times/mm)

Back gauge
Range
(mm)

Rake angle
(°)

Throat Depth
(mm)

Main Motor
(KW)

Weight
(KG)

Overall
Dimensions
LXWXH
(mm)

QC11Y/K-6X2500

6

2500

10-25

20-600

0.5-2

120

7.5

5000

3270X1580X2040

QC11Y/K-6X3200

6

3200

10-22

20-600

0.5-2

120

7.5

6400

3820X1580X2080

QC11Y/K-6X4000

6

4000

10-20

20-600

0.5-2

120

7.5

8500

4620X1630X2160

QC11Y/K-6X5000

6

5000

8-15

20-800

0.5-2

120

7.5

13000

5530X2075X2180

QC11Y/K-6X6000

6

6000

8-12

20-800

0.5-2

120

11

17000

6520X2080X2520

QC11Y/K-8X2500

8

2500

10-25

20-600

0.5-2

120

11

5500

3270X1580X2040

QC11Y/K-8X3200

8

3200

10-22

20-600

0.5-2

120

11

6500

3820X1580X2080

QC11Y/K-8X4000

6

4000

10-18

20-600

0.5-2

120

11

10000

4620X1630X2160

QC11Y/K-10X3200

10

3200

10-20

20-600

0.5-2

130

15

8500

3820X1680X2200

QC11Y/K-10X4000

10

4000

10-16

20-600

0.5-2

130

15

10800

4620X1680X2200

QC11Y/K-12X2500

12

2500

8-15

20-800

0.5-2.5

130

18.5

8500

3280X1650X2180

QC11Y/K-12X3200

12

3200

8-13

20-800

0.5-2.5

130

18.5

11000

3880X1850X2350

QC11Y/K-12X4000

12

4000

6-12

20-800

0.5-2.5

130

18.5

14000

4720X1960X2550

QC11Y/K-12X6000

12

6000

6-10

20-800

0.5-2.5

130

30

28000

6850X2280X2680

QC11Y/K-16X2500

16

2500

8-15

20-800

0.5-2.5

130

22

11000

3280X1980X2280

QC11Y/K-16X3200

16

3200

8-13

20-800

0.5-2.5

130

22

12600

3880X1980X2450

QC11Y/K-16X4000

16

4000

6-12

20-800

0.5-2.5

130

22

15500

4720X1980X2550

QC11Y/K-16X6000

16

6000

6-10

20-1000

0.5-2.5

130

37

32800

6850X2280X2780

QC11Y/K-20X2500

20

2500

8-14

20-800

0.5-3

150

30

14000

3380X2200X2780

QC11Y/K-20X3200

20

3200

8-12

20-800

0.5-3

150

30

17500

3880X2200X2780

QC11Y/K-20X6000

20

6000

6-8

20-1000

0.5-3

130

37

38000

6850X2400X2800

QC11Y/K-25X2500

25

2500

6-12

20-800

0.5-3

150

37

18000

3380X2200X2780

QC11Y/K-25X3200

25

3200

6-10

20-800

0.5-3

150

37

22000

3880X2200X2780



Description and specifications given in this catalogue are subject to modification without notice.
