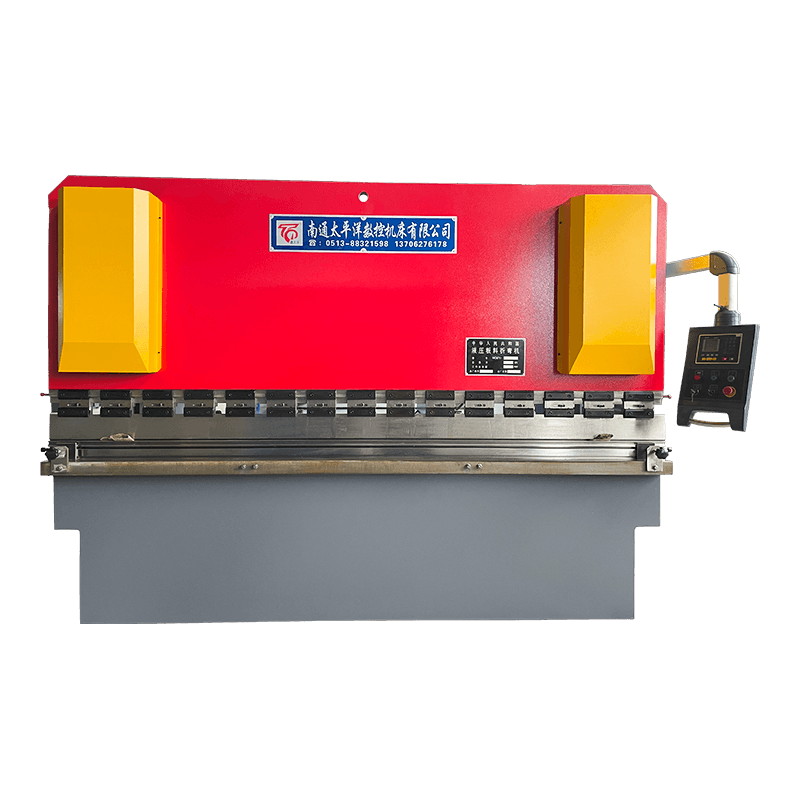

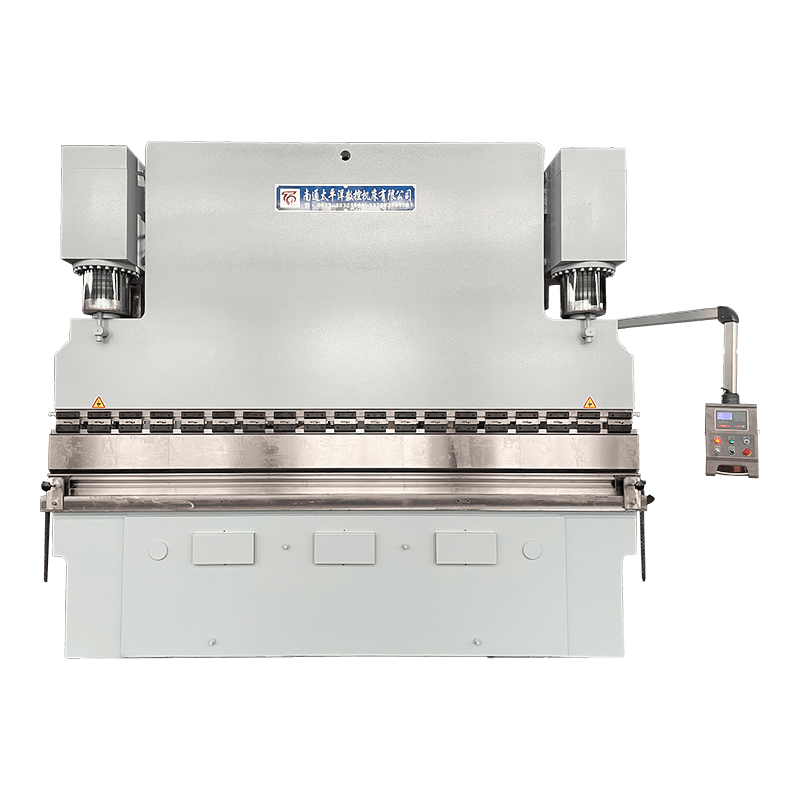

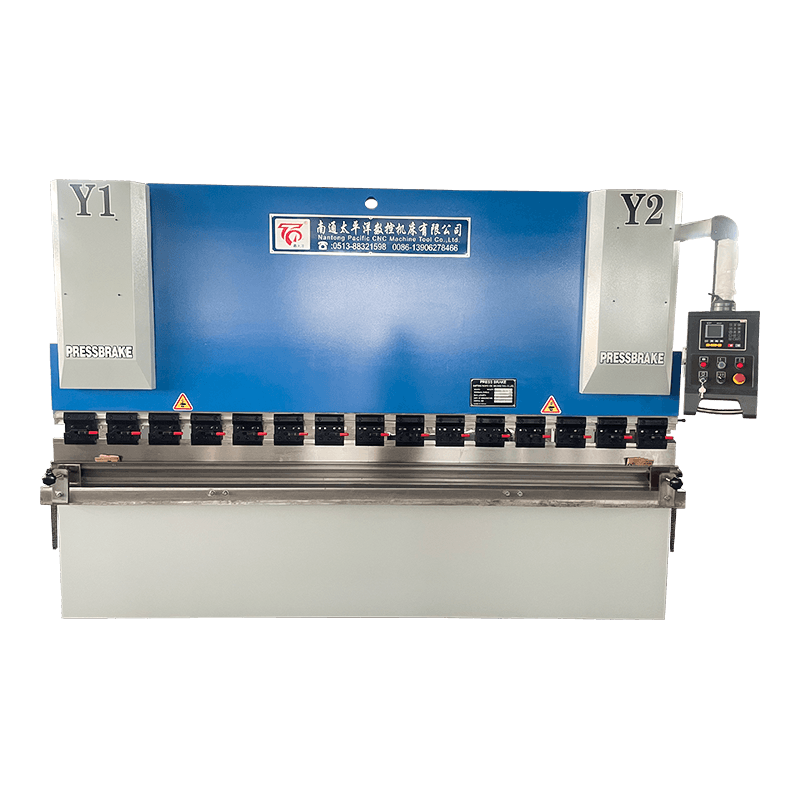

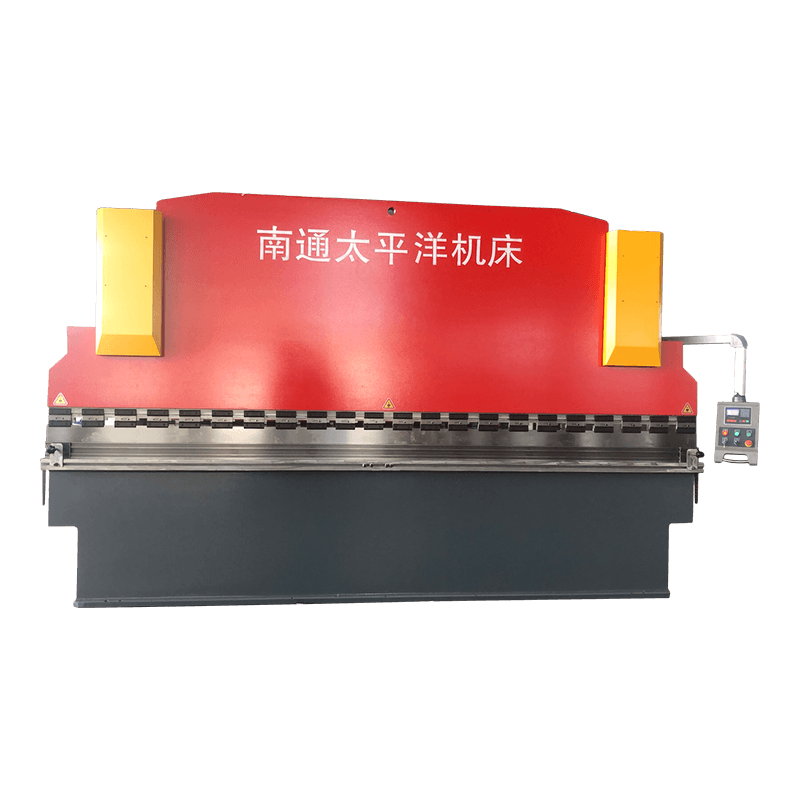

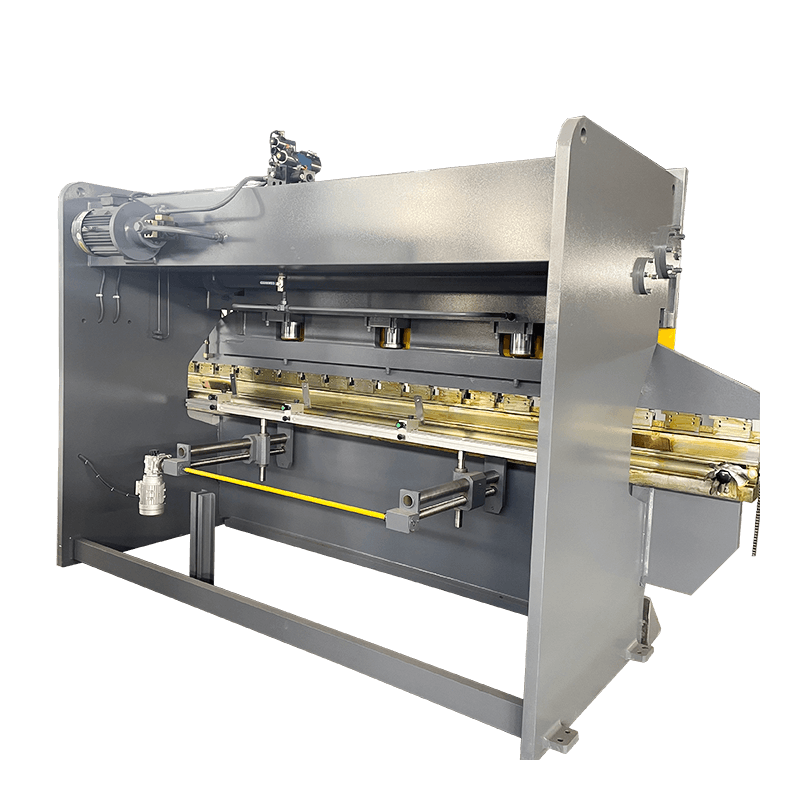

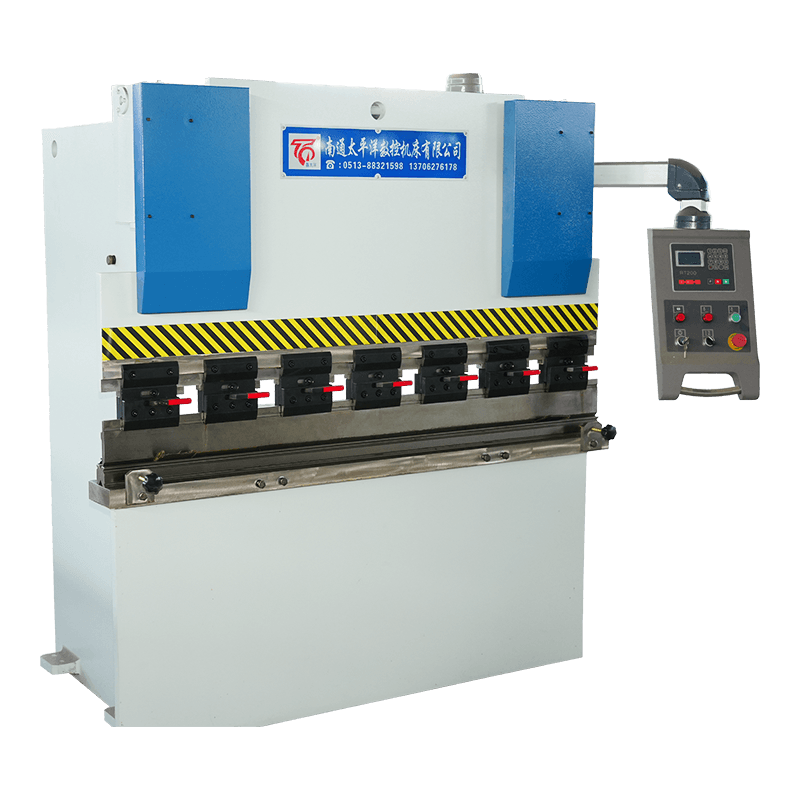

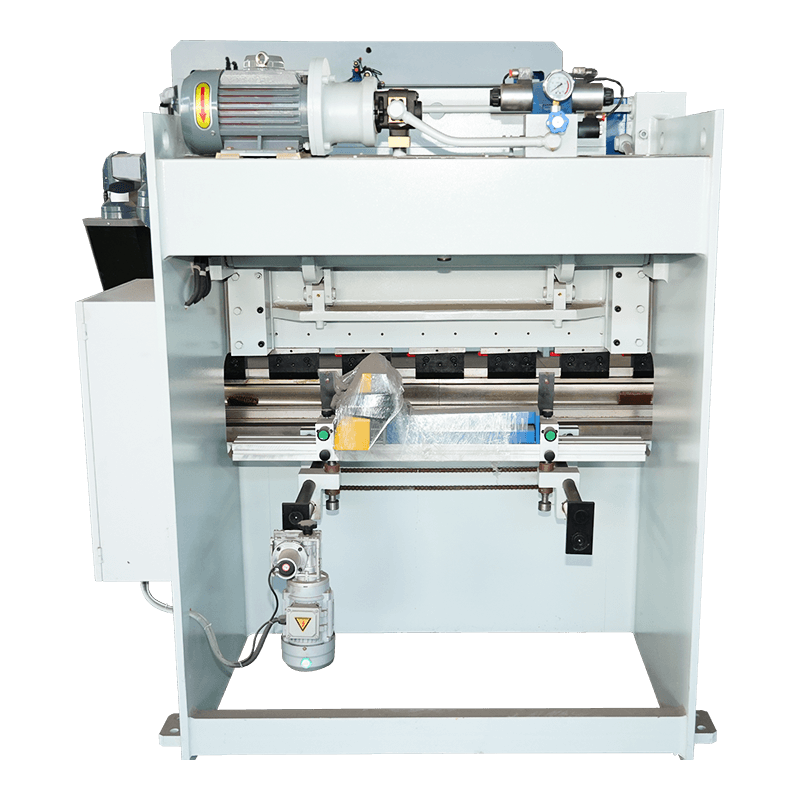

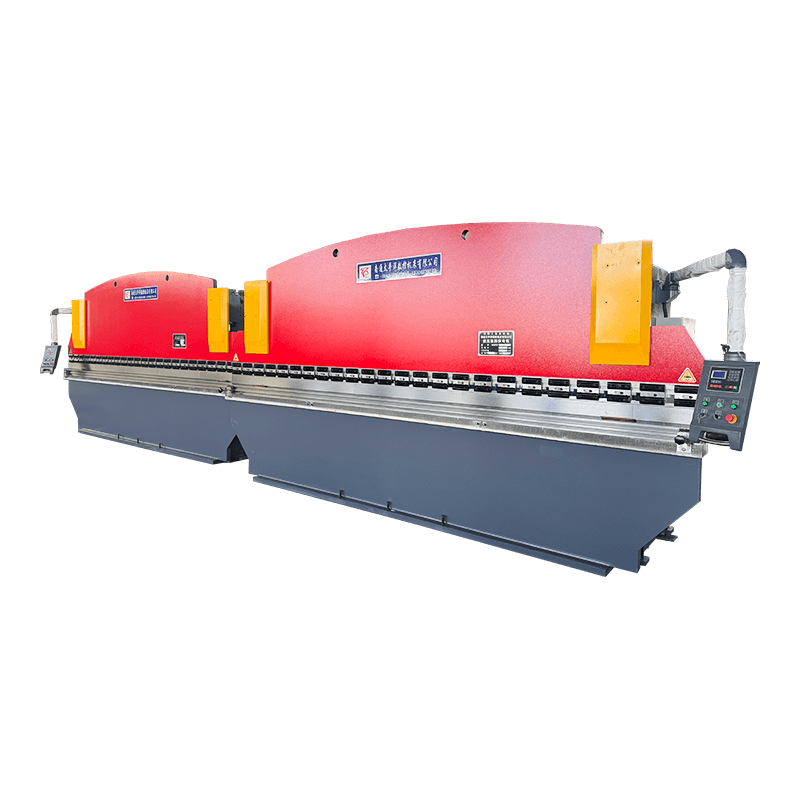

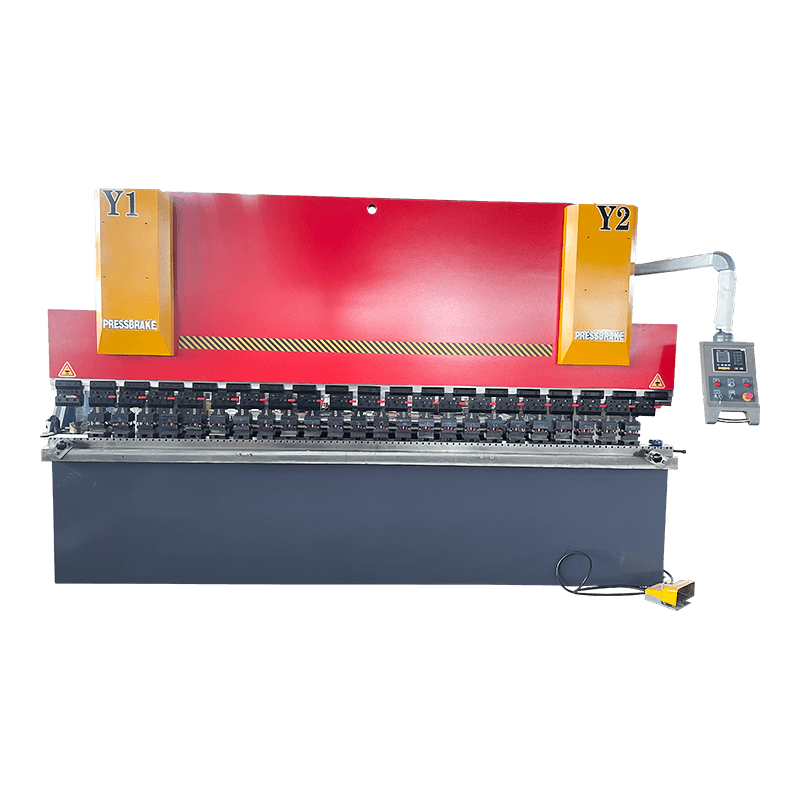

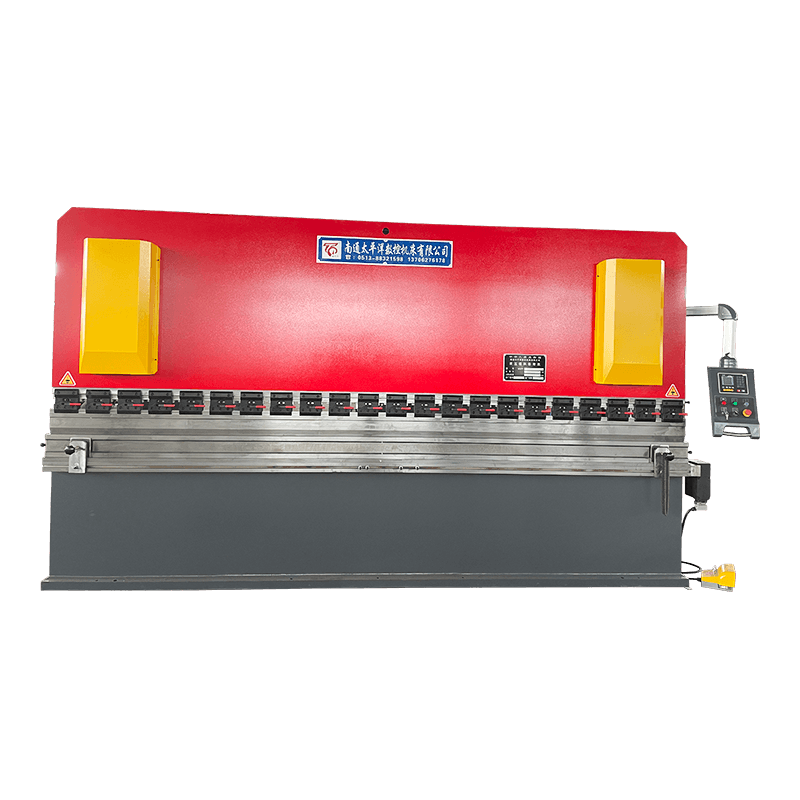

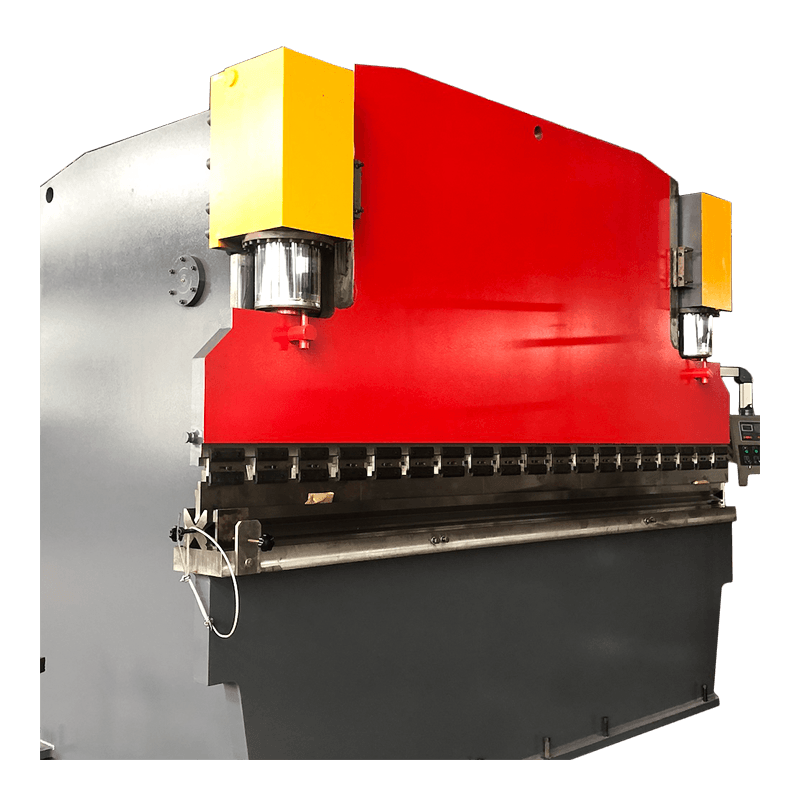

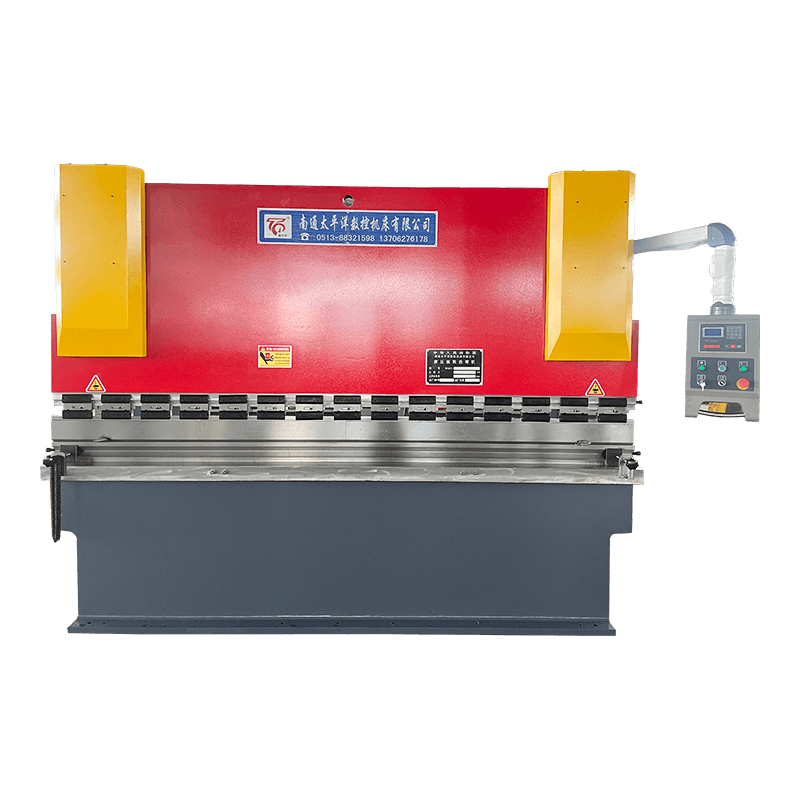

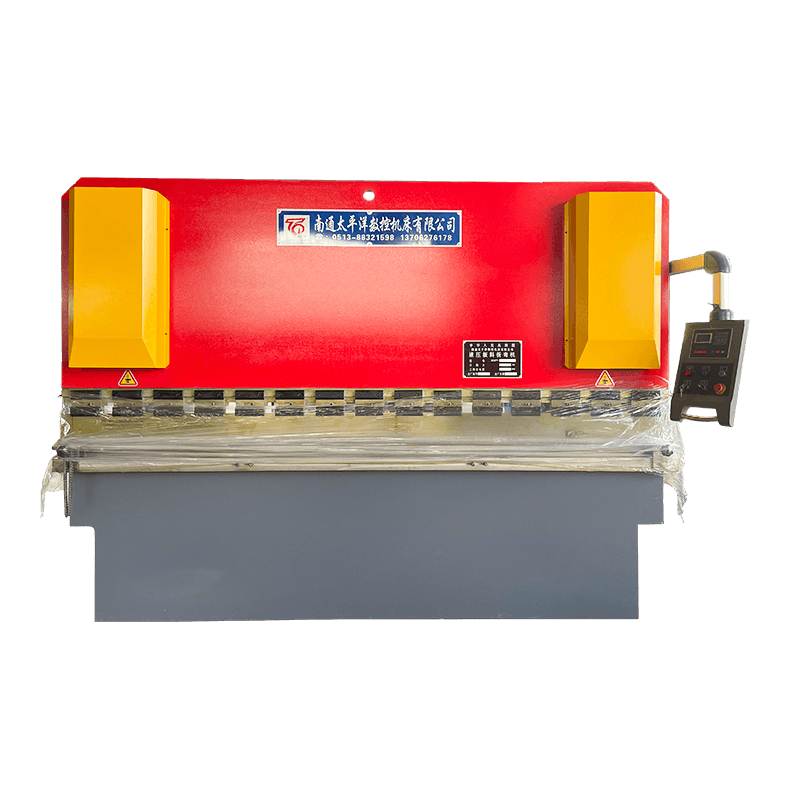

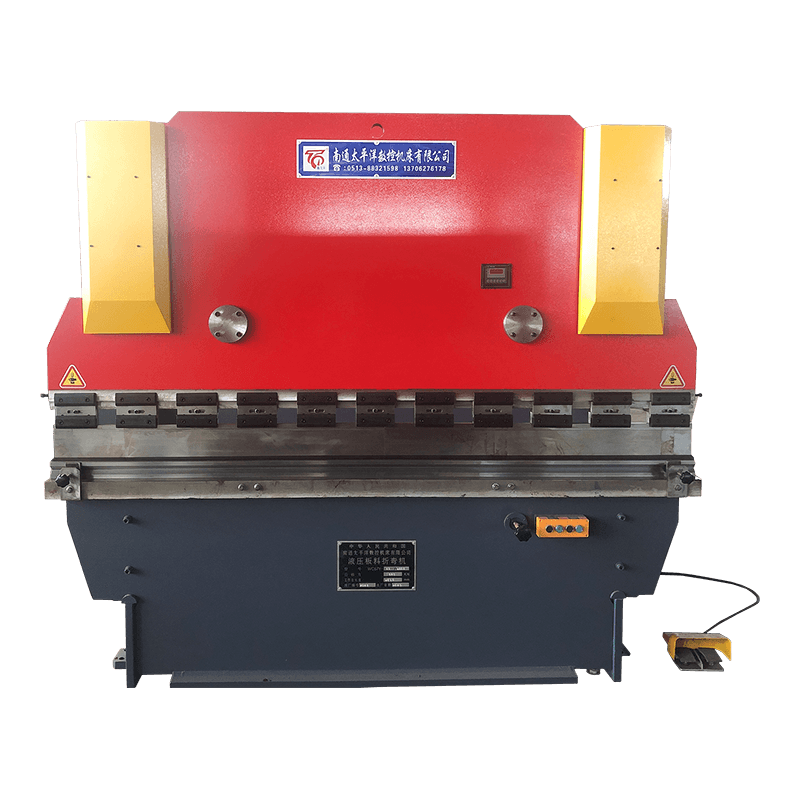

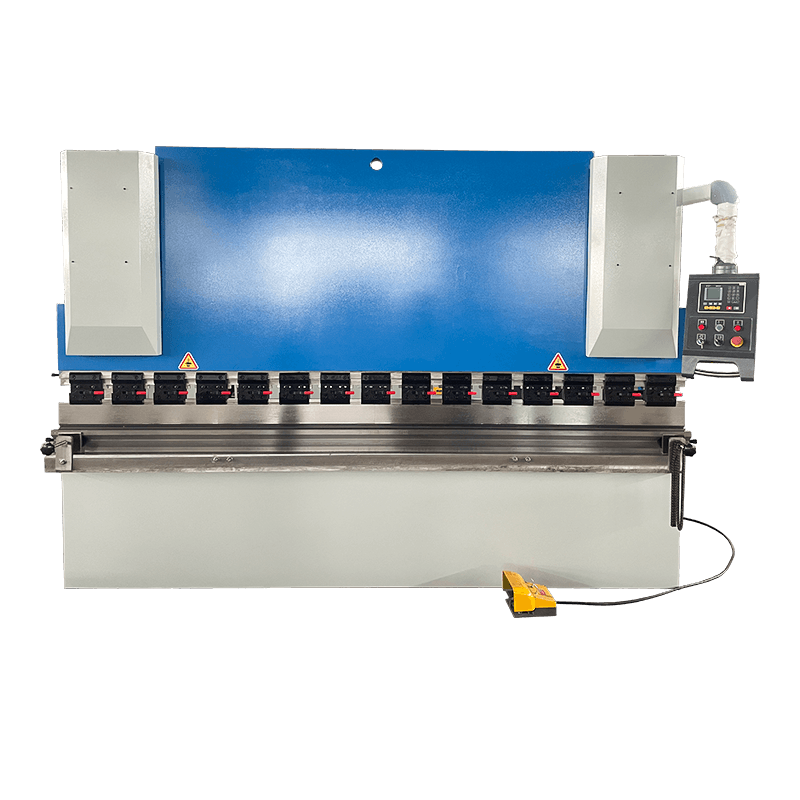

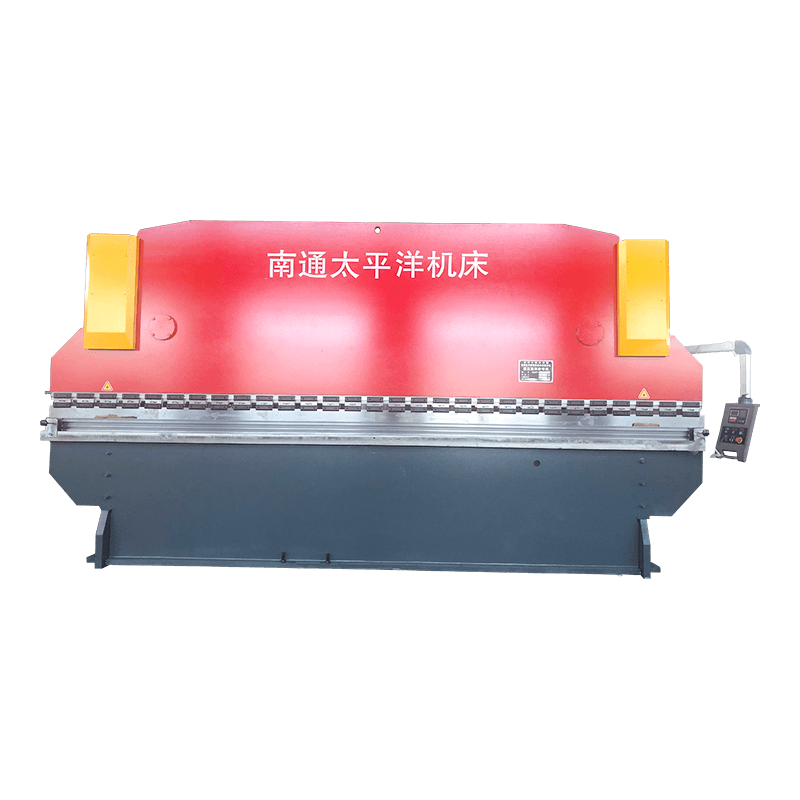

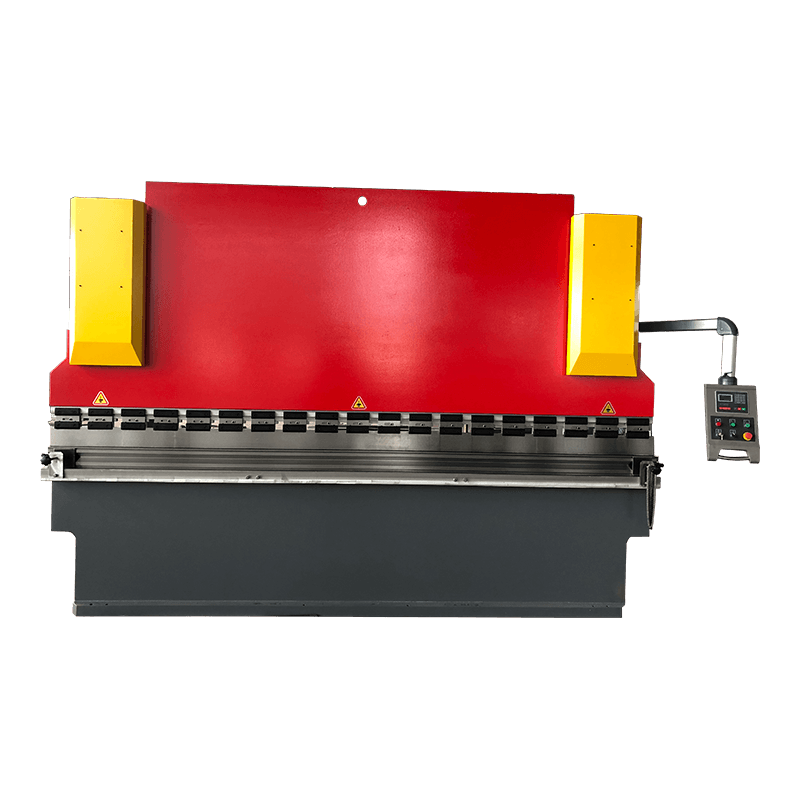

WC67Y-Series Hydraulic Sheet Metal Bending Machine

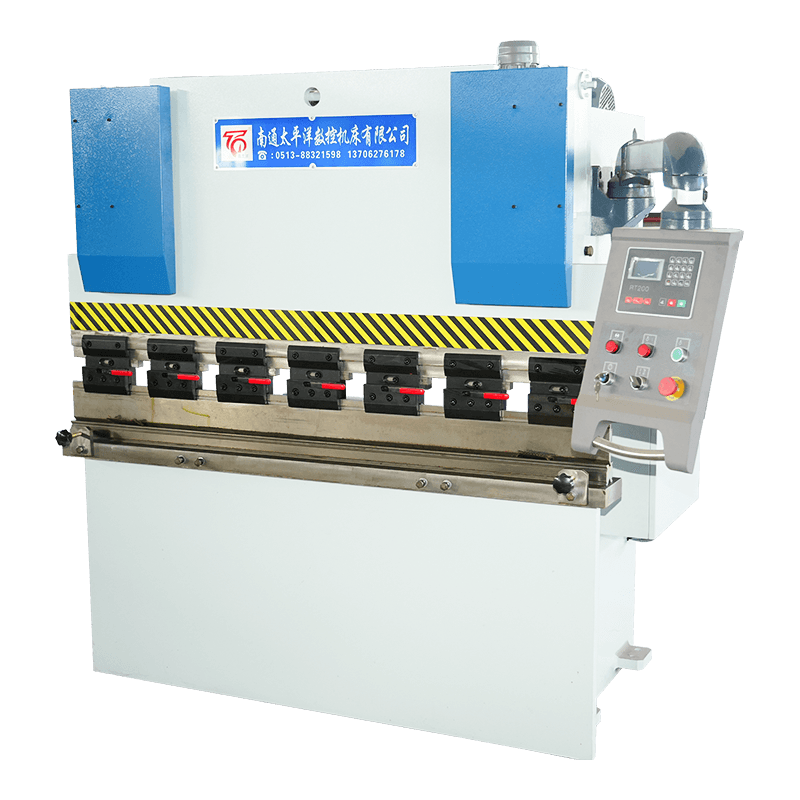

WC67Y-Series hydraulic sheet metal bending machine: generally with E21, RT200 NC Controls

WC67Y series is an affordable hydraulic bending machine, with low price, easy installation, simple operation and convenient after-sales maintenance. These advantages make this series of bending machines highly competitive and the first choice for most of our customers.

• The whole machine adopts all-steel welded structure, vibration stress elimination, high mechanical strength and good rigidity. ANSYS stress analysis software ensures the stability and accuracy of the machine.

• The upper mold can be segmented according to customer requirements to adapt to the processing of products of different sizes.

• The E21 system can program the back gauge stroke and slide stroke, and the system can store up to 40 sets of programs.

• The frame is grounded and boring and washing the whole process to ensure the accuracy and reliability of the machine.

• The steel back gauge structure ensures the positioning accuracy and stability of the back gauge.

• The overflow valve provides hydraulic overload protection for the system, and the pressure switch can adjust the system pressure.

• The emergency stop function of the foot switch ensures that the machine stops in an emergency.

Inquiry

Performance characteristics:

1. The machine body is designed by finite element analysis, and the vibration aging eliminates internal stress, making the machine body stable and reliable.
2. The unique rear cylinder drive device is designed using the lever principle, which not only reduces the working pressure of the system, but also improves the system's overload capacity. Increases the durability of the system and the stability of mechanical movement.
3. A multi-point positioning device is provided on the right end of the slider, which can not only easily adjust the slider to any positioning, but also complete the positioning of six different angles at one time, reducing the labor intensity of the operator and improving work efficiency.
4. A worm gear reduction motor and an eccentric shaft are provided on the left end of the slider, which not only facilitates the balance adjustment of the slider, but also meets the needs of special processing such as conical forming and bending.
5. The lower die is designed with a deflection compensation die holder and a deflection plate, which not only ensures the straightness of the workpiece, but also ensures the consistency of the angle of the workpiece, thereby improving the geometric accuracy of the workpiece.

E21 NC Control Features:

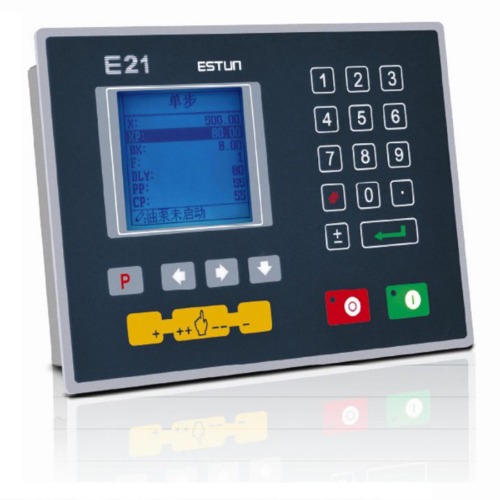

E21 Bending machine CNC device

Features:

●Backgauge and block control
●Control for general AC motors,frequency inverter
●Intelligent positioning
●Stock counter
●Holding/decompression time setting
●Program memory of up to 40 programs up to 25 steps per program
●One side positioning
●Retract function
●One key backup/restore of parameters
●mm/Inch

RT200 Controller Features:

RT200 is a digital display control system designed and developed by our company based on the advantages of many domestic and foreign CNC systems. It is used for the special needs of the shearing machine and bending machine industries. Compared with traditional digital display systems, it has the following features:
1. LCD display
2. Self-diagnosis of external input signals
3. One-way positioning
4. Hardware quadruple frequency
5. Beautiful and sturdy appearance
6. High cost performance
7. Multi-step programming function

Standard configuration of machine tools:

1. Standard configuration of E21 or RT200 system. If the system is not needed, a digital display device can also be selected separately.
2. Removable front support
3. The bending machine mold is made of 42CRMO material with a hardness of 42 degrees to ensure the life of the mold
4. Mechanical fixture. The upper mold is a mechanical hook-type fixture with high safety.

Optional:

1. Photoelectric protection
2. Special mold
3. Quick fixture
4. Manual compensation system
5. Install lights
6. Customized guardrails
7. Other special requirements are subject to the company's price verification

Series WC67Y/K Hydraulic Press Brake Main Parameters

Model	Nominal Pressure (KN)	Length of Table (mm)	Distance between frames (mm)	Throat Depth (mm)	Stroke (mm)	Open Height (mm)	Main Motor (KW)	Weight (KG)	Overall Dimensions LXWXH (mm)
WC67Y/K-40/1600	400	1600	1150	250	100	340	4	2000	1750x1350x1900
WC67Y/K-40/2200	400	2200	1850	250	100	340	4	2500	2300x1350x1900
WC67Y/K-40/2500	400	2500	2050	250	100	340	4	2800	2600x1400x1950
WC67Y/K-63/2500	630	2500	2050	250	120	360	5.5	4500	2600x1400x2000
WC67Y/K-63/3200	630	3200	2600	250	120	360	5.5	5400	3300X1450X2100
WC67Y/K-80/2500	800	2500	2050	250	120	380	7.5	5800	2650X1420X2120
WC67Y/K-80/3200	800	3200	2600	250	120	380	7.5	6100	3300X1450X2100
WC67Y/K-100/2500	1000	2500	2050	320	120	385	7.5	6100	2650X1450X2200
WC67Y/K-100/3200	1000	3200	2600	320	120	385	7.5	6600	3300X1450X2200
WC67Y/K-100/4000	1000	4000	3200	320	120	385	7.5	8000	4100X1450X2200
WC67Y/K-125/2500	1250	2500	2050	320	120	385	7.5	6300	2650X1550X2200
WC67Y/K-125/3200	1250	3200	2600	320	120	385	7.5	7000	3300X1550X2200
WC67Y/K-125/4000	1250	4000	3200	320	120	385	7.5	8200	4100X1550X2200
WC67Y/K-160/3200	1600	3200	2600	320	200	470	11	10000	3300X1780X2500
WC67Y/K-160/4000	1600	4000	3200	320	200	470	11	12000	4100X1780X2520
WC67Y/K-200/3200	2000	3200	2600	320	200	485	11	12000	3300X1750X2680
WC67Y/K-200/4000	2000	4000	3200	320	200	485	11	13800	3300X1750X2680
WC67Y/K-250/3200	2500	3200	2600	320	250	560	18.5	13600	3300X2000X2880
WC67Y/K-250/4000	2500	4000	3200	320	250	560	18.5	15000	4100X2050X2980
WC67Y/K-300/3200	3000	3200	2600	350	250	560	22	16000	3300X2050X3000
WC67Y/K-300/4000	3000	4000	3200	350	250	560	22	20000	4100X2080X3100
WC67Y/K-300/6000	3000	6000	4700	350	250	560	22	28000	6100X2080X3250
WC67Y/K-400/3200	4000	3200	2600	350	250	580	37	20000	3300X2000X3000
WC67Y/K-400/4000	4000	4000	3200	350	250	580	37	26000	4100X2080X3150
WC67Y/K-400/6000	4000	6000	4750	400	250	580	37	37500	6100X2180X3580
WC67Y/K-500/4000	5000	4000	3200	350	250	580	37	26000	4100X2080X3150
WC67Y/K-500/6000	5000	6000	4750	400	250	580	37	37500	6100X2180X3580

Description and specifications given in this catalogue are subject to modification without notice.
